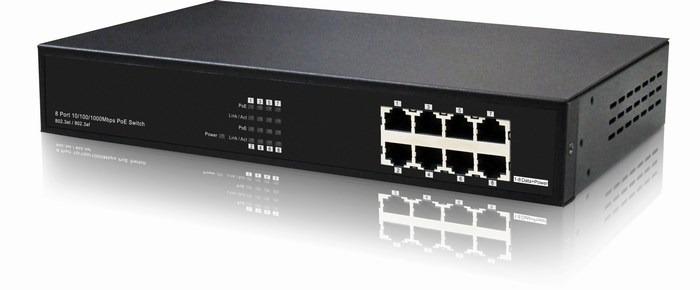

8-port Gigabit 10/100/100Mbps PoE Switch IONNET IGS-808 (130 Watt)
– Bao gồm 8 cổng PoE, công suất 130 Watt.
– Hỗ trợ 802.3af/ 802.3at
– PoE green Power Saving
– Green Ethernet
– Fanless
Introduction
IGS-808 (130) is 8 10/100/1000Mbps port Power over Ethernet switch which consists of 8 PSE/PoE ports. The models compliant to POE IEEE 802.3at, it denes new green power saving idea on PSE Port. That device application: Wireless Access Point; PoE client device; 45 IP phone and IPcam system. It can Power 8 PoE client devices in same time.
Product Features
– Providing 8 ports of 10/100/1000Mbps TX Switching port
– Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T
– Complying with 802.3x Flow Control
– 8 Ports PSE/ PoE function, compliant with IEEE-802.3af class3 and IEEE802.3at
– Supporting the power up to Max 30Watt for each PSE/PoE port
– Supporting the flow control: Back pressure for Half-duplex and IEEE 802.3x for Full-duplex mode
– All ports support Auto-MDIX function
– Being dedicated 2000Mbps Full-duplex bandwidth to the each port
– Broadcast storm control and supporting store & forward operation
– Non-blocking & Non-head-of-line blocking full-wire speed forwarding
– Auto-learning networking congurations
– Built-in 2K MAC learning table, 96K byte buffer memory
– Filtering/ Forwarding Rate: 1000Mbps/ 1488,000pps 100Mbps/ 148,800pps; 10Mbps/14,880pps
– Supports packet length 1522 bytes/ Maximum 1536bytes
– Jumbo frames: 9K
– Status LEDs: System Power, Link/Activity, PoE/PSE on line
– Status LEDs: System Power, Link/Activity, PoE/PSE on line
– Network Transmission Media: 10Base-T Cat. 3, 4, 5 UTP/STP; 100Base-TX Cat. 5 UTP/STP, 1000BASE-T Cat. 5E UTP/STP.
– Operating Temperature: 0 C ~ 45 C
– Storing Temperature: -20 C ~ 90 C
– Humidity: 10% ~90% RH (Non-condensing)
– Dimension (L x W x H): 263 x160 x 44 mm ( 1U high)
– Power Consumption: 8Watt
– Maximum Supply PoE Power per device: 130Watt
– Weight: 1350g
– Safety & EMI Certicates: CE & FCC
– Smart plug & play
Technical Specifications
Standards | IEEE 802.3 10BaseT |
IEEE 802.3u 100BaseTX | |
IEEE802.3ab 1000BaseT | |
IEEE802.3af/ 802.3at | |
Features | Number of Ports: |
8 x 10/100/1000BaseT with RJ-45 Connector | |
8 PSE ports with RJ-45 connectors | |
Data Transfer Rate | Ethernet: |
10Mbps/Half-Duplex | |
20Mbps/Full-Duplex | |
Fast Ethernet: | |
100Mbps/Half-Duplex | |
200Mbps/Full-Duplex | |
Gigabit: | |
2000Mbps/Full-Duplex | |
Transmission Media | 10BaseT Cat. 3, 4, 5 UTP/STP, up to 100 m |
100BaseTX Cat. 5 UTP/STP, up to 100 m | |
1000Base T cat 5,6 UTP, up to 100m | |
Led Indicators | Per Port: (TX): 10/100M Link/Act, 1000M, PoE Per Unit: Power |
Maximum Supply PoE per Device | 130Watt |
Power Consumption | 8Watt |
Dimensions | 263 x 160 x 44 mm |
Weight | 1350g |
– Sản xuất tại Taiwan.
– Bảo hành: 12 tháng.
