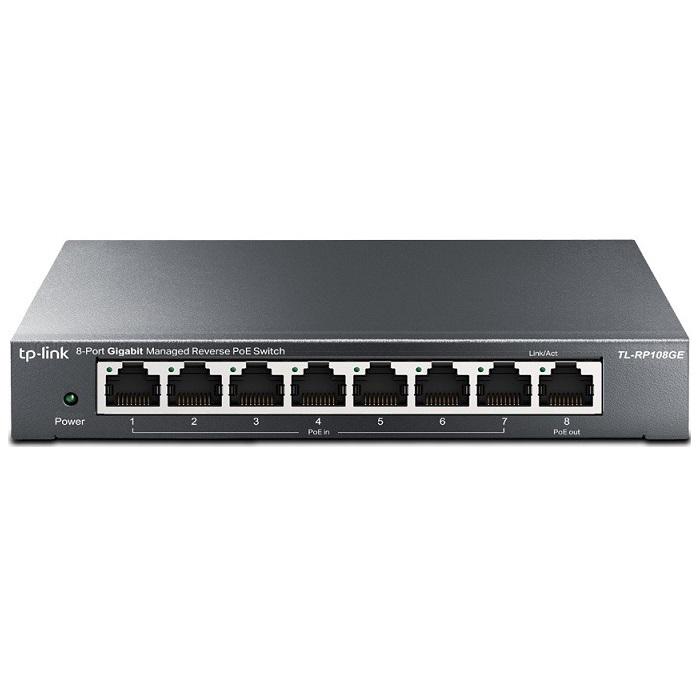

8-Port Gigabit Managed Reverse PoE Switch TP-LINK TL-RP108GE
- 7 PoE input and 1 PoE output 10/100/1000Mbps RJ45 Ports
- 1 DC output port that supports both 5V and 12V voltage switching
- Durable metal casing of superior quality and professional appearance
- Intelligent management via a web user interface and downloadable utility
- Green technology reduces power consumption
Đặc tính kỹ thuật
| HARDWARE FEATURES | |
| Standards and Protocols | CSMA/CD |
| Interface | 7 Passive PoE-in RJ45 Ports: 10/100/1000Mbps Auto-Negotiation Voltage: 24/48 V (mixture is not supported) Power pin of Ethernet cable: 4/5+ 7/8- 1 Passive PoE-out RJ45 Port: 10/100/1000Mbps Auto-Negotiation Voltage: depending on the input voltage of PoE-in ports Power pin of Ethernet cable: 4/5+ 7/8- 1 DC Output Port: Voltage: 5/12 V |
| Packet Forwarding Rate | 11.9 Mbps |
| Mac Address Table | 4 K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 16 Gbps |
| IEEE Standards | IEEE802.3ab, IEEE802.3i, IEEE802.3p, IEEE802.3q, IEEE802.3x, IEEE802.3u |
| Data Rates | Ethernet: 10 Mbps (Half Duplex), 20 Mbps (Full Duplex) Fast Ethernet: 100 Mbps (Half Duplex), 200 Mbps (Full Duplex) Gigabit Ethernet: 2000 Mbps (Full Duplex) |
| LED Indicator | Power, Link/Act LED |
| Dimensions (W x D x H) | 158 × 99.1 × 25 mm |
| Max Power Consumption | 3.98 W (with no PD connected) 18.01 W (24 V with PD connected) 32.74 W (48 V with PD connected) |
| Max Heat Dissipation | 13.57 BTU/h (with no PD connected) 61.41 BTU/h (24 V with PD connected) 111.64 BTU/h (48 V with PD connected) |
| SOFTWARE FEATURES | |
| Quality of Service | Support Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Transmission Method | Store-And-Forward |
- Bảo hành: 36 tháng.
