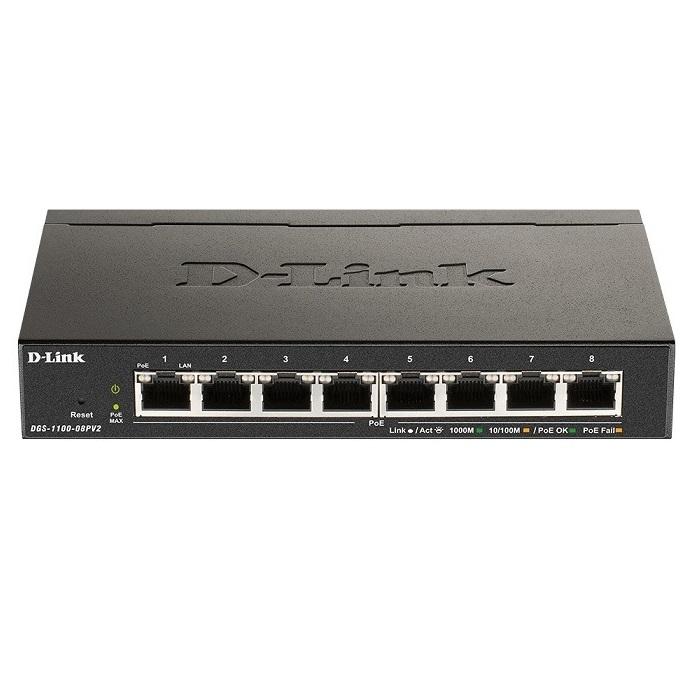

8-Port Gigabit PoE Smart Managed Switch D-Link DGS-1100-08PV2
- 8 x 10/100/1000BASE-T PoE ports
- Supports IEEE 802.3at PoE
- 64W PoE power budget
- Compact design for convenient placement
- Fanless design for silent operation
- Innovative D-Link Green energy saving features
- Complete web interface for comprehensive switch management
Đặc tính kỹ thuật
| Model | DGS-1100-08PV2 |
| General | |
| Hardware Version | A1 |
| Size | Desktop |
| Number of Ports | 8 x 10/100/1000 Mbps (PoE) |
| Port Functions | IEEE 802.3 for Ethernet IEEE 802.3u for Fast Ethernet IEEE 802.3ab for Gigabit Ethernet IEEE 802.3at Auto-negotiation Supports half/full-duplex operation (half at 10/100 Mbps, full at 1000 Mbps) Auto MDI/MDIX IEEE 802.3x Flow Control supports full-duplex mode IEEE 802.3az compliant |
| Performance | |
| Switching Capacity | 16 Gbps |
| Maximum Forwarding Rate | 11.9 Mpps |
| MAC Address Table Size | 4K entries |
| Packet Buffer | 1.5 Mbits |
| Flash Memory | 2 Mbytes |
| PoE | |
| PoE Standard | IEEE 802.3af/802.3at |
| PoE Capable Ports | Ports 1 to 8 |
| PoE Power Budget | 64 W 30W per PoE port max |
| Power Consumption | |
| Standby Mode | 2.0 W |
| Maximum Power Consumption | 77.9 W (PoE on) 4.6 W (PoE off) |
| Physical | |
| Power Input | 100 to 240 V AC, 50 to 60 Hz external power adapter |
| MTBF | 786,841 hours |
| Acoustics | 0 dB(A) |
| Weight | 0.43 kg |
| Dimensions | 171 x 97.8 x 28.6 mm |
- Bảo hành: 3 năm.
