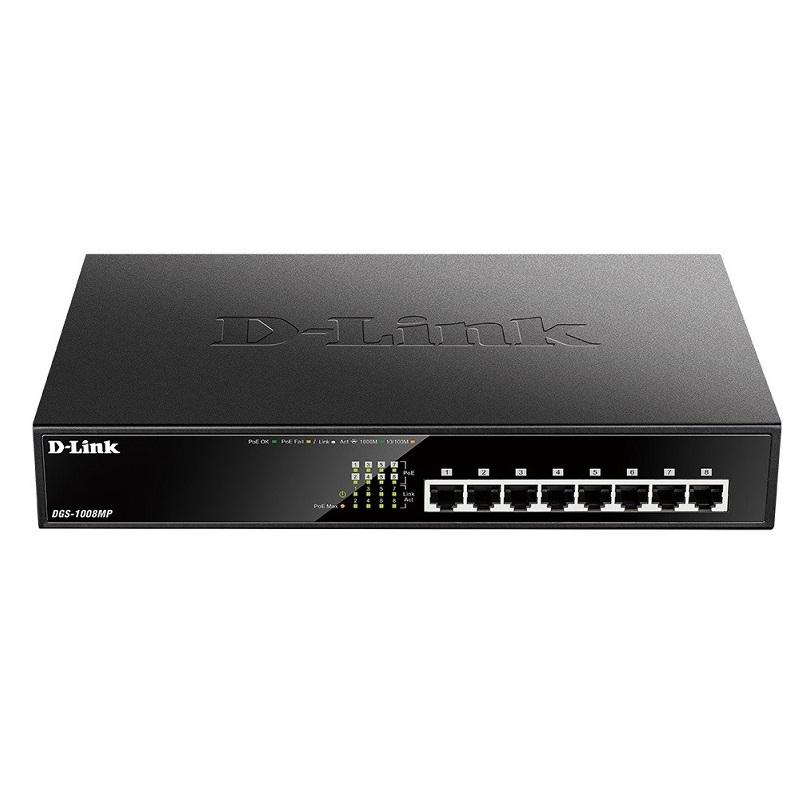

8-Port Gigabit PoE Switch D-Link DGS-1008MP
High-Speed Networking
- 8 x 10/100/1000 Mbps Ethernet ports
- Full/half-duplex for 10/100 Mbps Ethernet and full-duplex for 1000 Mbps Ethernet
Versatile Connectivity
- 8 x PoE+ ports with up to 30 watts per port
- 140 watts PoE power budget
Reliability
- IEEE 802.3x Flow Control
- Store-and-forward switching scheme
- RoHS compliant
Easy Setup
- Plug-and-play installation
- Auto MDI/MDI-X crossover on all ports
Desktop and Rackmount Design
- Rack-mountable 11” metal casing (1U)
- Fanless design
PoE Functionality
- IEEE 802.3at-compliant
- 125 W total power budget
- Up to 30 W power output per port
Specifications
| General | |
| Size | 11-inch desktop/rackmount size, 1U height |
| Number of Ports | 8 x 10/100/1000 Mbps ports |
| Switching Capacity | 16 Gbps switching fabric |
| Media Interface Exchange | Auto MDI/MDI-X |
| Transmission Method | Store-and-forward |
| MAC Address Table | 4K entries per device |
| Packet Buffer Memory | 192 KB per device |
| Packet Filtering / Forwarding Rates | Ethernet: 14,880 pps per port |
| Fast Ethernet: 148,800 pps per port | |
| Gigabit Ethernet: 1,488,000 pps per port | |
| Physical | |
| LED Indicators | Per port: activity / link and speed |
| Per port: power / status | |
| Per device: PoE Max | |
| Dimensions | 280 x 180 x 44 mm |
| Power Input | 100 to 240 V AC, 50/60 Hz |
| Maximum PoE Budget | 125 W |
| PoE up to 30 W per port | |
| Power Consumption | 6.98 W (PoE off) |
| 140 W (PoE on) | |
- Bảo hành: 36 tháng.
