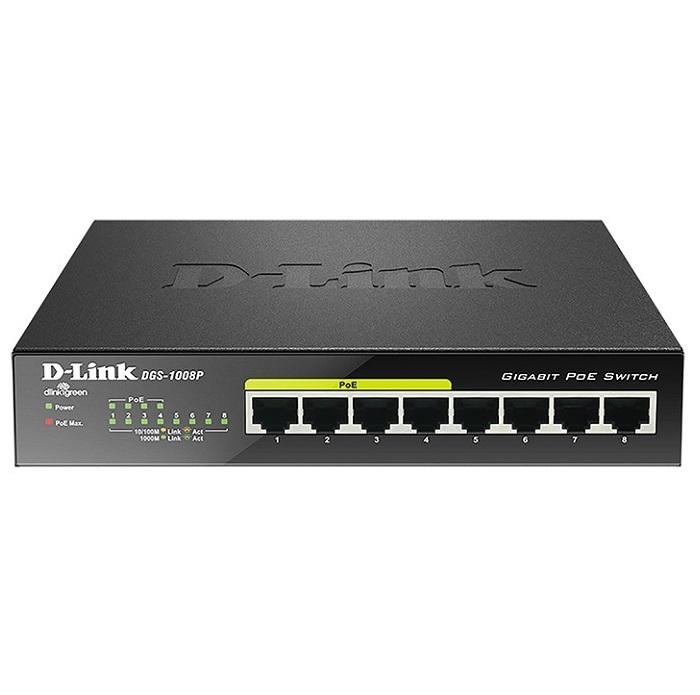

8-port Gigabit PoE Switch D-Link DGS-1008P

8-port Gigabit PoE Switch D-Link DGS-1008P

  • MS 000014413
  • D-Link
Giá : 1,800,000 vnđ (Đã bao gồm VAT)

8-port Gigabit PoE Switch D-Link DGS-1008P

8-port Gigabit PoE Switch D-Link DGS-1008P

-         Smart Switch 8-port RJ45 10/100/1000BASE-TX tích hợp 4 cổng PoE 802.3af.

-         Công suất tối đa 15.4W/ cổng PoE.

-         Tổng công suất cung cấp: 52 W.

-         Chức năng cấp nguồn qua mạng PoE.

-         Hỗ trợ cơ chế tự động lựa chọn cáp thẳng/chéo.

-         Số địa chỉ MAC tối đa 4096, cơ chế chống nghẽn 802.3x (flow control) và dung lượng gói tin tối đa (Jumbo Frame) 9720 byte.

-         Nguồn điện ngõ vào: 100 - 240VAC.

Đặc tính kỹ thuật

Features

8 10/100/1000 Mbps Gigabit Ports

Auto MDI/MDIX Crossover for all ports

Store-and-forward Switching Scheme

Full/half-duplex for Ethernet/Fast Ethernet

Speeds

IEEE 802.3x Flow Control

Plug-and-play Installation

Built-in D-link Green Technology

RoHS Compliant

EEE 802.1p QoS (4 Queues, Strict Mode)

Supports Cable Diagnostics

Supports 9720 KBytes Jumbo Frames

Switching Capability

16 Gbps

Standards

IEEE 802.3 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

ANSI/IEEE 802.3 NWay Auto-negotiation

IEEE 802.3x Flow Control

IEEE 802.1p QoS

PoE Features

Supports IEEE 802.3af

Supplies power to PD: up to 15.4 Watts

Total PoE budget: 52 Watts

PoE port count/ Average PoE watts per port:

4 (Port 1 - 4) / 13 Watts

Data Transfer Rates

Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)

Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)

Gigabit Ethernet: 2000 Mbps (full duplex)

Topology

Star

Media Interface Exchange

Auto MDI/MDIX adjustment for all ports

Network Cables

10BASE-T: UTP CAT 3/4/5/5e (100 m max.), EIA/TIA-586 100-ohm STP (100 m max.), 100BASE-TX, 1000BASE-T: UTP CAT 5/5e (100 m max.), EIA/TIA-568 100-ohm STP (100 m max.)

LED Indicators

Per port: Link/ Activity/ Speed/ PoE Status

Per device: Power/ PoE Max

Transmission Method

Store-and-forward

MAC Address Table

4K Entries per device

MAC Address Learning

Automatic update

Packet Filtering/Forwarding Rates

Ethernet: 14,880 pps per port

Fast Ethernet: 148,800 pps per port

Gigabit Ethernet: 1,488,000 pps per port

RAM Buffer

192 KBytes per device

Certifications

FCC Class B

ICES-003 Class B

CE Class B

C-Tick Class B

VCCI Class B

CUL

LVD

Power Consumption

Power On (Standby): DC input: 0.48 Watts,  AC input: 2.1 Watts, Maximum (PoE Off), DC input: 4.48 Watts, AC input: 6.2 Watts, Maximum (PoE On), DC input: 57.83 Watts, AC input: 63.2 Watts

Power Adapter

AC input: 100 to 240 VAC, 50/60 Hz

DC output: DC 48 V/1.25 A (60 Watts)

Dimensions

190 x 120 x 38 mm

-         Bảo hành: 12 tháng.
