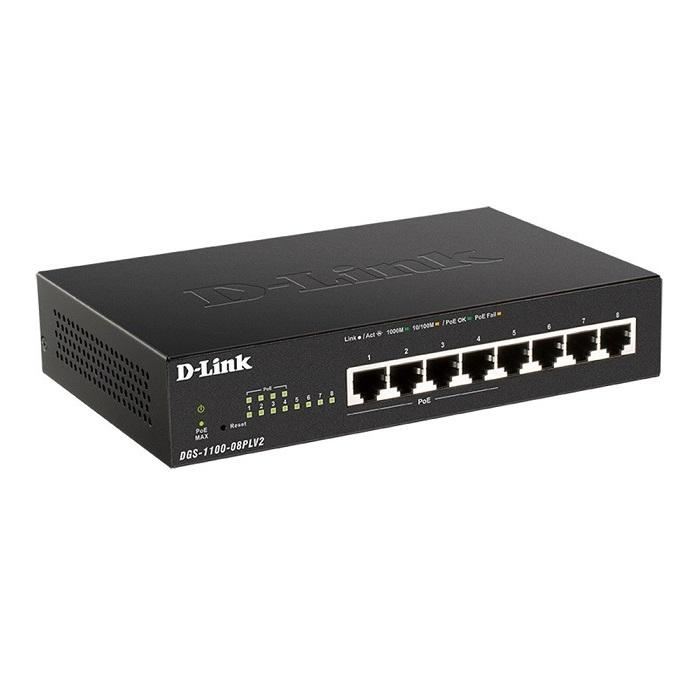

8-Port Gigabit Smart Managed PoE Switch D-Link DGS-1100-08PLV2
- 8 x 10/100/1000BASE-T ports with 4 x PoE+ ports
- PoE+ support with up to 30W per port
- 80W PoE Power Budget
- Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
- Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
- Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security
- IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic
- Innovative energy saving features are good for your budget, as well as the environment
- Get up and going quickly with streamlined first-time setup and ongoing management
Specifications
| Model | DGS-1100-08PLV2 |
| Interface | |
| Hardware Version | A1 |
| Size | Desktop |
| Number of Ports | 4 x 10/100/1000Mbps PoE 4 x 10/100/1000 Mbps |
| Port Functions | IEEE 802.3 for Ethernet IEEE 802.3u for Fast Ethernet IEEE 802.3ab for Gigabit Ethernet IEEE 802.3at Auto-negotiation Supports half/full-duplex operation (half at 10/100 Mbps, full at 1000 Mbps) Auto MDI/MDIX IEEE 802.3x Flow Control supports full-duplex mode IEEE 802.3az compliant |
| Performance | |
| Switching Capacity | 16 Gbps |
| Max. Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 4K entries |
| Packet Buffer | 1.5 Mbits |
| Flash Memory | 2 Mbytes |
| PoE | |
| PoE Standard | IEEE 802.3af/802.3at |
| PoE Capable Ports | Ports 1 to 4 |
| PoE Power Budget | 80 W 30W per PoE port max |
| Physical | |
| Acoustic | 0 dB(A) |
| Power Input | 100 to 240 V AC, 50 to 60 Hz external power adapter |
| Maximum Power Consumption | 83.5 W (PoE on) 3.5 W (PoE off) |
| Ventilation | Fanless |
| Dimensions | 190 x120 x 38 mm |
| Weight | 0.60 kg |
| Operating Temperature | 0 to 40 ˚C |
| Storage Temperature | -40 to 70 ˚C |
| Operating Humidity | 0% to 90% RH, non-condensing |
| Storage Humidity | 0% to 95% RH, non-condensing |
| Software | |
| L2 Features | Flow Control Jumbo frames up to 9216 bytes IGMP Snooping Static Trunk Loopback Detection Cable diagnostics Port mirroring Statistics |
| VLAN | Port-based VLAN 802.1Q tagged VLAN Surveillance VLAN Voice VLAN Management VLAN Supports 32 static VLAN groups Max. 4094 VIDs Asymmetric VLAN |
| QoS | 802.1p Quality of Service 4 queues per port Queue handling Bandwidth control DSCP |
| Security | Static MAC addresses (Up to 32 entries) Traffic segmentation Broadcast/Multicast/Unknown Unicast Storm Control Port security |
| Management | Web-based GUI (Supports IPv4) D-Link Network Assistant (DNA) |
| Green Technology | Compliant with RoHS 10 Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE) |
- Bảo hành: 36 tháng.
