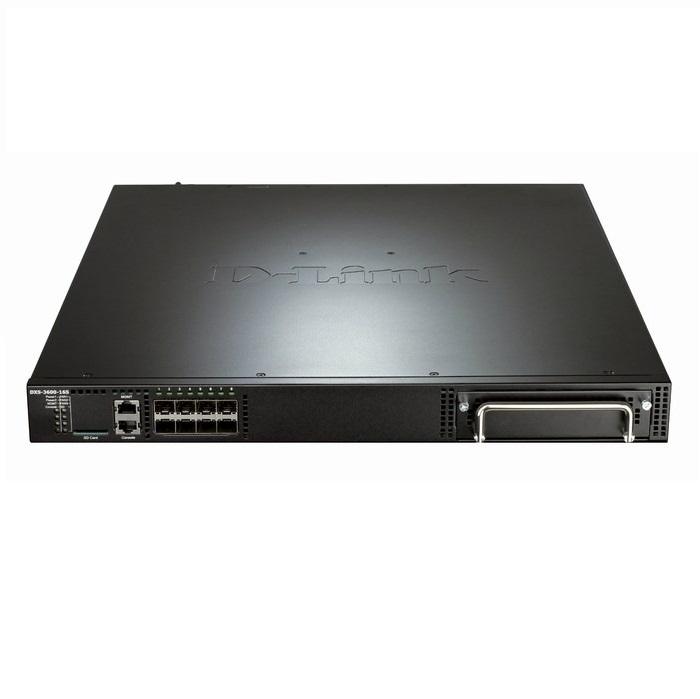

8-Port Layer 3 Stackable 10 Gigabit SFP Switch D-Link DXS-3600-16S/ESI
-8 Ports 10 Gigabit SFP+ Slots and 4-port 10GBASE-T/SFP+ Combo Port.
-/ESI: EU 2 round pin power cord.
-Attain up to 480G stacking bandwidth with four devices functioning together as one.
-Supports Lossless Ethernet Feature via Data Center Bridging (DCB).
-Support IEEE 802.1Qbb (PFC), IEEE 802.1Qaz (ETS), IEEE 802.1Qau (CN).
-Switch supports a two rate and single-rate Three Color Marker (trTCM/srTCM).
-Support ITU-T G.8032 Ethernet Ring Protection Switching (ERPS).
-Switch Resource Management (SRM) for flexible management of system resources.
-Physical Stacking via four 10G ports, can stack up to 4 devices.
-Virtual Stacking/Clustering of up to 32 units via D-Link Single IP Management.
Technical Specifications
| Interfaces | 8 fixed SFP+ 10G ports with one expansion module |
| Console Port | RJ-45 console port for out-of-band management |
| Management Port | 10/100/1000 Base-T RJ-45 Ethernet for out-of-band remote management |
| SD Card Slot | 1 slot |
| Switching Capacity | 480Gbps |
| Max. Forwarding Rate | 357.14Mpps |
| Packet Buffer Memory | 9 MB |
| MAC Address Table | 128K |
| Stackability | Physical Stacking |
| 480G stacking bandwidth | |
| Up to 4 switches in a stack | |
| Ring/chain topology support | |
| Virtual Stacking/Clustering of up to 32 units1 | |
| Supports D-Link Single IP Management | |
| L2 Features | MAC Address Table: 128K entries, Flow Control, 802.3x Flow Control when using Full Duplex: Back Pressure when using Half Duplex, HOL Blocking Prevention, Spanning Tree Protocol, 802.1D STP, 802.1w RSTP, 802.1s MSTP, Supports Root Restriction, Jumbo Frame, Up to 12,000 bytes, 802.1AX Link Aggregation, Max. 16 groups per device, 12 ports per group, ERPS1 (Ethernet Ring Protection Switching), Port Mirroring |
| Supports One-to-One, Many-to-One | |
| Supports Mirroring for Tx/Rx/Both | |
| Supports 4 mirroring groups | |
| Flow Mirroring | |
| Supports One-to-One, Many-to-One | |
| Supports Mirroring for Rx | |
| Supports 4 mirroring groups | |
| Loopback Diagnostics | |
| L3 Features | ARP |
| 512 Static ARP | |
| Supports Gratuitous ARP | |
| IP Interface | |
| Supports 256 interfaces | |
| Loopback Interface1 | |
| VLAN | 802.1Q |
| 802.1v | |
| Double VLAN (Q-in-Q) | |
| Port-based Q-in-Q | |
| Selective Q-in-Q | |
| Port-based VLAN | |
| MAC-based VLAN | |
| Subnet-based VLAN | |
| Private VLAN | |
| VLAN Group | |
| Max. 4K static VLAN groups | |
| Max. 4094 VIDs | |
| GVRP | |
| Up to 4K dynamic VLANs | |
| EMI/EMC | FCC, CE, C-Tick, IC, VCCI, BSMI |
| Power Input | 100 to 240 V AC, 50/60 Hz |
| Maximum Power Consumption | 74.3 W |
| Standby Power Consumption | 69.9 W |
| Heat Dissipation (Max.) | 253.36 BTU/hr |
| Heat Dissipation (Standby) | 238.36 BTU/hr |
| Dimensions | 440 x 506 x 44 mm |
| Weight | 9.89 kg |
