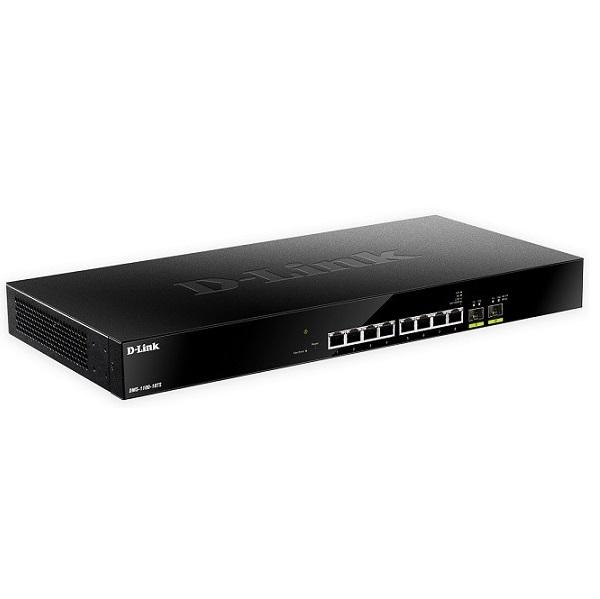

8-port Multi-Gigabit Ethernet Smart Managed PoE Switch with 2 ports 10 Gigabit Ethernet SFP+ D-Link DMS-1100-10TS
-8 x Multi-Gigabit RJ45 ports that support 2.5G, 1G, and 100Mbps.
-2 x 10GbE/1GbE SFP+ ports.
-Advanced L2 switching and security features.
-The D-Link DMS-1100-10TS Series 2.5 Gigabit Ethernet Smart Managed Switches are a cost-effective 2.5 Gigabit switch series capable of servicing a range of network needs in any type of business. Featuring eight 2.5 Gigabit access ports and two 10 Gigabit SFP+ uplink ports, these switches are ideal for deploying high-performance 802.11ac Wave 2 access points using 2.5 Gigabit connections, while providing 10 Gigabit wire-speed uplinks for optimal bandwidth when accessing the larger local area network.
Seamless Integration and Future Proof
The DMS-1100-10TS switches support IEEE 802.3bz and are fully backwards compatible with 802.3ab Gigabit Ethernet to deliver 2.5 Gigabit speed over commonly deployed Cat 5e cables over distances up to 100 meters.
Driven by the increasing popularity of 802.11ac Wave 2 access points and the emerging trend of 2.5 Gigabit LAN connections, 2.5 Gigabit technology will ultimately replace Gigabit as the standard for Ethernet connectivity. With backwards compatibility for older standards, the DMS-1100-10TS Series can be flawlessly integrated into existing Gigabit Ethernet network infrastructures while simultaneously making networks future-proof for the next generation of 2.5 Gigabit connectivity.
Complete Layer 2 and Troubleshooting Features
The DMS-1100-10TS switches come with a complete lineup of L2 features, including port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The switches also feature loopback detection and cable diagnostics to help network administrators identify and solve network problems quickly and easily. Loopback detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
Versatile Management
The DMS-1100-10TS switches support a variety of management options. An intuitive, web-based Graphical User Interface (GUI) enables administrators to easily set up and remotely manage their networks, greatly reducing switch deployment time.
These switches also come with the D-Link Network Assistant (DNA) utility that simplifies the configuration of devices supporting the D-Link Discovery Protocol. This utility allows network administrators to discover multiple D-Link Smart Managed Switches within the same L2 network segment and displays them on screen for instant access. With this utility, users do not need to change the IP address of their PC. It further allows for simultaneous configuration and basic setup of all discovered devices, including password changes and firmware upgrades.
The DMS-1100-10TS Series also supports D-View. D-View is a network management system that allows for the central management of critical network characteristics such as availability, reliability, resilience, and security.
Technical Specifications
| Hardware version | Rev A |
| Number of Ports | 8 x 100/1000/2.5GBASE-T (RJ45) |
| 2 x 10GbE (SFP+) | |
| Port Standards & Functions | IEEE 802.3u 100BASE-TX |
| IEEE 802.3ab 1000BASE-T | |
| IEEE 802.3z 1000BASE-X | |
| IEEE 802.3bz 2.5GBASE-T | |
| IEEE 802.3ae 10G over fiber | |
| IEEE 802.3az | |
| Network Cables for 2.5GBASE-T | Cat 5e (100 m max) |
| Media Interface Exchange | Auto MDI/MDIX adjustment for all twisted-pair ports |
| Performance | Switching Capacity: 80 Gbps |
| Maximum Packet Forwarding Rate: 59.52 Mpps | |
| Transmission Method: Store-and-forward | |
| MAC Address Table: Up to 16,000 entries per device | |
| Ports | Ports 1 to 8 |
| AC Input | 100 to 240 VAC |
| Maximum Power Consumption | 33.7 W |
| Standby Power Consumption | 21.6 W |
| Dimensions | 440 x 210 x 44 mm |
| Weight | 2.53 kg |
-Bảo hành: 36 tháng.
