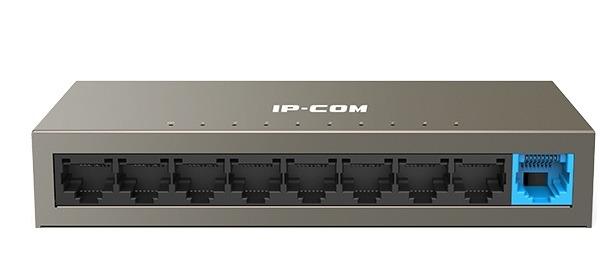

9-Port 10/100Mbps Ethernet Unmanaged Switch IP-COM F1109D
- Hỗ trợ 9 cổng 10/100Mbps RJ45.
- Chuẩn kết nối: IEEE802.3/u/x.
- Dung lượng chuyển đổi: 1.8Gbps.
- Tốc độ chuyển tiếp gói: 14880pps (10Mbps) - 148800pps (100Mbps).
- Nguồn điện: AC 100-240V 50/60Hz.
Đặc tính kỹ thuật
| Model | F1109D |
| Hardware | |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Port | 9 x 10/100 Mbps RJ45 port |
| Transmission media | Recommended: CAT5/5e UTP or better |
| Forwarding rate | 10 Mbps: 14880 pps 100 Mbps: 148800 pps |
| Power | Input: 100 - 240 V AC, 50/60 Hz Output: DC 9 - 12 V |
| Lightning protection | 6 kV for uplink port |
| Dimension (L x W x H) | 140 mm x 66.5 mm x 25.3 mm |
| LED indicato | 1 x Power 9 x Link/Act |
| Switching capacity | 1.8 Gbps |
| MAC address table | 2 K |
| Power consumption | Max: 5 W |
| Software | |
| Store-and-forward | Supported |
| Protocol | CDMA/CD |
| MAC address learning | Auto learning & auto aging |
| VLAN | Supported. Port 9 is an uplink port and ports 1 to 8 are isolated from each other. |
| Others | |
| Temperature | Operating temperature: (0 - 40)°C Storage temperature: (-40 - 70)°C |
| Humidity | Operating humidity: (10% - 90%) RH, non-condensing Storage humidity: (5% - 90%) % RH, non-condensing |
| Certification | CCC, CE, FCC, RoHS |
- Bảo hành: 24 tháng.
