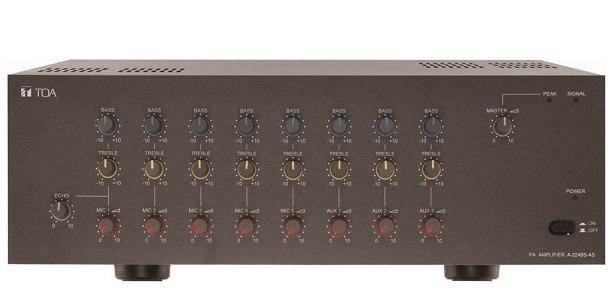

Mixer Amplifier 240W TOA A-2248S AS
- Tăng âm kèm mixer A-2248S AS đem lại chất lượng âm thanh tốt đáp ứng nhu cầu âm thanh trong nhà thờ và các ứng dụng khác.
Đặc tính kỹ thuật
| Power Supply | AC: 220V, 50/60 Hz DC: 24V |
| Power Output | Rated 240W |
| Power Consumption | AC: 600 W (rated output) AC: 330 W (operation at EN60065) DC: 20 A (operation at rated output) |
| Frequency Response | 50 Hz (±3 dB) - 20,000 Hz (±5 dB) |
| Distortion | Less than 1% THD at 1 kHz, 1/3 rated output power |
| Inputs (Sensitivity, Impedance, Connector) | |
| MIC 1 | 1.0mV (-60dB*) Balanced 600Ω, Phone Jack, Echo |
| MIC 2 | 1.0mV (-60dB*) Balanced 600Ω, Phone Jack |
| MIC 3 | 1.0mV (-60dB*) Balanced 600Ω, Phone Jack |
| MIC 4 | 1.0mV (-60dB*) Balanced 600Ω, Phone Jack |
| MIC 5 | 1.0mV (-60dB*) Balanced 600Ω, Phone Jack |
| AUX 1 | 300mV (-10dB*) Unbalanced 10Ω, RCA Pin Jack |
| AUX 2 | 300mV (-10dB*) Unbalanced 10Ω, RCA Pin Jack |
| AUX 3 | 300mV (-10dB*) Unbalanced 10Ω, RCA Pin Jack |
| Speaker Outputs | 100V, 4Ω |
| PRE AMP OUT | 1.0V (0dB*) Unbalanced 600Ω, RCA Pin Jack |
| PWR AMP IN | 1.0V (0dB*) Unbalanced 10Ω, RCA Pin Jack |
| REC OUT | 1.0V (0dB*) Unbalanced 600Ω, RCA Pin Jack |
| Phantom Power | DC +21 V (MIC 1) |
| Noise Level (S/N) | More than 80 dB at All Volume control full CCW |
| More than 50 dB at All Volume control full CW | |
| Output Regulation | Less than 3 dB no load to full load |
| Controls | 5 Microphone Gain Controls |
| 3 Aux Gain Controls | |
| 8 Bass Tone Controls | |
| 8 Treble Tone Controls | |
| 1 Echo Level Control | |
| 1 Master Controls | |
| 1 Power On/Off Switch | |
| Tone Control | Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz |
| Indicators | 1 LED Signal, 1 LED Peak, 1 LED Power On |
| Ambient Temperature | 0℃ to +40℃ |
| Finish | Front Panel: Aluminum Gray Case: Steel plate, Gray |
| Dimensions | 420 (W) × 144 (H) × 361 (D) mm |
| Weight | 14.5 kg |
- Sản xuất tại Indonesia.
- Bảo hành: 12 tháng.
