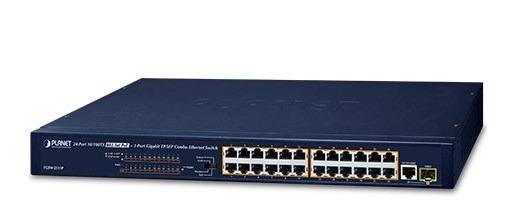

24-Port 10/100Base-TX PoE + 1-Port Gigabit TP/SFP Switch PLANET FGSW-2511P
Physical Interface
- 24 x 10/100BASE-TX RJ45 copper ports
- 1 x 10/100/1000BASE-T Gigabit RJ45 copper port
- One shared 1000BASE-X SFP interface
- Hardware-based DIP switch for “Standard”, “VLAN”, “QoS” or “Extend” mode selection
Power over Ethernet
- Complies with IEEE 802.3at Power over Ethernet Plus mid-span PSE
- Up to 24 IEEE 802.3af/at devices powered
- Supports PoE power up to 30 watts for each PoE port
- 190-watt PoE budget
- Each PoE port supports 52V DC power to PoE powered device
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m in standard mode
- The “Extend” mode features 25-watt PoE transmit distance of 250m at speed of 10Mbps
Switching
- Hardware-based 10/100Mbps and 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
- Flow control for full duplex operation and back pressure for half duplex operation
- Integrates address look-up engine, supporting 16K absolute MAC addresses
- Automatic address learning and address aging
- Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing
Hardware
- 19-inch rack-mount size, 1U height
- LED indicators for PoE ready/activity and LINK/ACT
- Internal AC power supply
- Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
Đặc tính kỹ thuật
| Hardware | |
| 10/100Mbps Ports | 24 10/100BASE-TX MDI/MDI-X RJ45 ports |
| Gigabit Ports | 1 10/100/1000BASE-T MDI/MDI-X RJ45 port |
| SFP Slot | 1 1000BASE-X SFP interface, shared with Gigabit RJ45 copper |
| PoE Inject Port | 24-port with 802.3at PoE injector function (Port-1 to Port-24) |
| LED Display | System: Power (Green) 10/100BASE-TX RJ45 Interface: LNK/ACT (Green, Port-1 to Port-24) PoE (Amber, Port-1 to Port-24) 10/100/1000BASE-T RJ45 and 1000BASE-X combo Interface: LNK/ACT (Green, Port 25) |
| DIP Switch | 4 operation modes: Standard/QoS/VLAN/Extend |
| Switch Architecture | Store and Forward |
| MAC Address Table | 16K MAC address table with auto learning function |
| Switch Fabric | 6.8Gbps |
| Switch Throughput | 5.06Mpps @64bytes |
| Maximum Packet Size | 16K bytes |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Power Requirements | AC 100~240V, 3A max. |
| Power Consumption | 205 watts, 699.5 BTU |
| Dimensions (W x D x H) | 440 x 200 x 45 mm |
| Weight | 2419 g |
| ESD Protection | Contact discharge of ±6KV DC Air discharge of ±8KV DC |
| Surge Immunity | ±4KV |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | Mid-span |
| Power Pin Assignment | 4/5 (+), 7/8(-) |
| PoE Power Output | Per Port 52V DC, 600mA. max. 30 watts (IEEE 802.3at) Per Port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af) |
| PoE Power Budget | 190 watts |
| Number of PDs, 7 watts | 24 |
| Number of PDs, 15 watts | 12 |
| Number of PDs, 30 watts | 6 |
| Standard Conformance | |
| EMI Safety | CE, FCC |
| Standard Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3z Gigabit SX/LX IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3z Energy Efficient Ethernet |
| Environment | |
| Operating Environment | 0 ~ 50 degrees C |
| Storage Environment | -10 ~ 70 degrees C |
| Operating Humidity | 5 ~ 95%, relative humidity, non-condensing |
| Storage Humidity | 5 ~ 95%, relative humidity, non-condensing |
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
