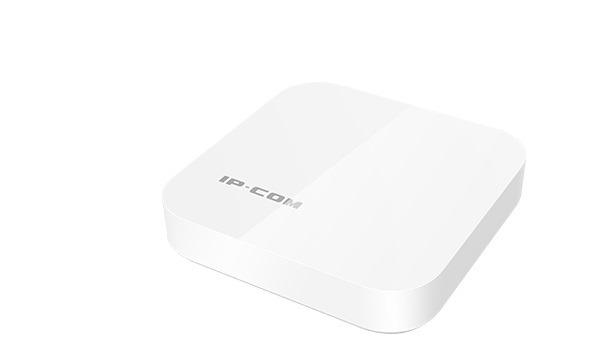

AC1200 Enterprise Mesh Wi-Fi System IP-COM EW9
- IP-COM EP9 là thiết bị phát sóng Wifi hỗ trợ công nghệ True Mesh.
- Cổng kết nối: 1 cổng Gigabit WAN, 1 cổng Gigabit WAN/LAN, 2 cổng Gigabit LAN.
- Băng tần: 2.4GHz + 5GHz.
- Tốc độ không dây: 300Mbps (2.4GHz) + 867Mbps (5GHz).
- Ăng ten: 4x4dBi, Horizontal omnidirectional antenna.
- Chuẩn Wifi: 802.11ac Wave 2.
- Chế độ Router và Bridge.
- Kích thước: 170x170x36 mm.
Đặc tính kỹ thuật
| Model | EW9 |
| Hardware Specification | |
| Frequency | Dua-Band: 2.4G+5G |
| Wireless Rate | 300+867Mbps |
| 11AC Wave 2 | Support |
| Beamforming | Support |
| Networking Technology | True Mesh |
| Wireless Power | 2.4G: 19dBm 5G: 19dBm |
| Antenna | 4x4dBi, Horizontal omnidirectional antenna |
| Interface | 1xPower Port, 1xReset button, 4xGigabit Port |
| Software Specification | |
| WAN Ports | dual WAN |
| QoS | Support |
| Seamless Roaming | Support |
| Installation and Deployment | |
| Mounting | Wall mount/ceiling mount/pole mount/desk mount |
| APP Installation and Configuration | Support |
| Route Mode and Bridge Mode | Support |
| Mesh nodes in one Mesh System | Typical: 3 Max: 9 |
| Management and Maitainance | |
| APP Management | Support |
| Authentication Access | |
| Local Certifiication | Support |
| Other | |
| Dimensions | Product: 170x170x36 mm Packing: 260x175x55 mm |
| Packing List | Bracketx1, Boltx4, Expansion sleevex4, Expansion scewx4, Ribbonx2 |
| Packing Quantities | 20 |
| Power Dimensions | External switching power supply 12V/1A |
| Certification | CCCFCCCERoHs |
- Bảo hành: 24 tháng.
