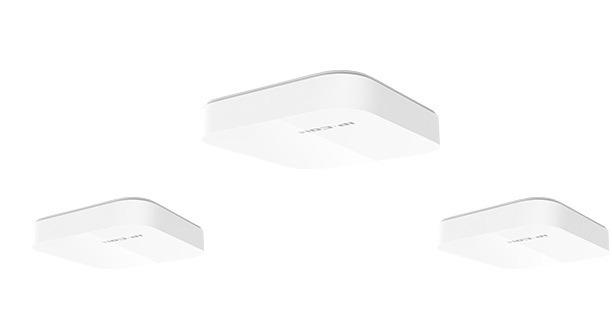

AC1200 Enterprise Mesh Wi-Fi System IP-COM EW9+EP9x2
- True Mesh technology, Access Point connect each other, we only need one accesss cable in the whole Mesh system.
- Support local management, remote management, network troubleshooting based on the APP, achieving network maintenance remotly.
- Built-in Portal authentication server enables the WEB authentication, account-password authentication, and SMS authentication.
- Supports four installation modes, Support router and bridge (AP) deployment modes to adapt to multiple scenarios.
- Support 1200M 11AC Wave 2: Using 802.11 ac Wave 2 MU (MIMO) technology, faster your surfing experence and strongly improve the capacity.
- Built-in omnidirectional antenna design and Beamforming+ technology make the signal in the system stable and reliable,Support Seamless Roaming.
Đặc tính kỹ thuật
| Model | EW9 |
| Hardware Specification | |
| Frequency | Dua-Band: 2.4G+5G |
| Wireless Rate | 300+867Mbps |
| 11AC Wave 2 | Support |
| Beamforming | Support |
| Networking Technology | True Mesh |
| Wireless Power | 2.4G: 19dBm 5G: 19dBm |
| Antenna | 4x4dBi, Horizontal omnidirectional antenna |
| Interface | 1xPower Port, 1xReset button, 4xGigabit Port |
| Software Specification | |
| WAN Ports | dual WAN |
| QoS | Support |
| Seamless Roaming | Support |
| Installation and Deployment | |
| Mounting | Wall mount/ceiling mount/pole mount/desk mount |
| APP Installation and Configuration | Support |
| Route Mode and Bridge Mode | Support |
| Mesh nodes in one Mesh System | Typical: 3 Max: 9 |
| Management and Maitainance | |
| APP Management | Support |
| Authentication Access | |
| Local Certifiication | Support |
| Other | |
| Dimensions | Product: 170x170x36 mm Packing: 260x175x55 mm |
| Packing List | Bracketx1, Boltx4, Expansion sleevex4, Expansion scewx4, Ribbonx2 |
| Packing Quantities | 20 |
| Power Dimensions | External switching power supply 12V/1A |
| Certification | CCCFCCCERoHs |
| Model | EP9 |
| Hardware Specification | |
| Frequency | Dua-Band: 2.4G+5G |
| Wireless Rate | 300+867Mbps |
| 11AC Wave 2 | Support |
| Beamforming | Support |
| Networking Technology | True Mesh |
| Wireless Power | 2.4G: 19dBm 5G: 19dBm |
| Antenna | 4x4dBi, Horizontal omnidirectional antenna |
| Interface | 1xPower Port, 1xReset button |
| Software Specification | |
| QoS | Support |
| Seamless Roaming | Support |
| llation and Deployment | |
| Mounting | Wall mount/ceiling mount/pole mount/desk mount |
| APP Installation and Configuration | Support |
| Route Mode and Bridge Mode | Support |
| Mesh nodes in one Mesh System | Typical:3 |
| Max:9 | |
| Management and Maitainance | |
| APP Management | Support |
| Authentication Access | |
| Local Certifiication | Support |
| Other | |
| Dimensions | Product: 170x170x36mm Packing: 260x175x55mm |
| Packing List | Bracketx1, Boltx4, Expansion sleevex4, Expansion scewx4, Ribbonx2 |
| Packing Quantities | 20 |
| Power Dimensions | External switching power supply 12V/1A |
| Certification | FCCCERoHs |
- Bảo hành: 24 tháng.
