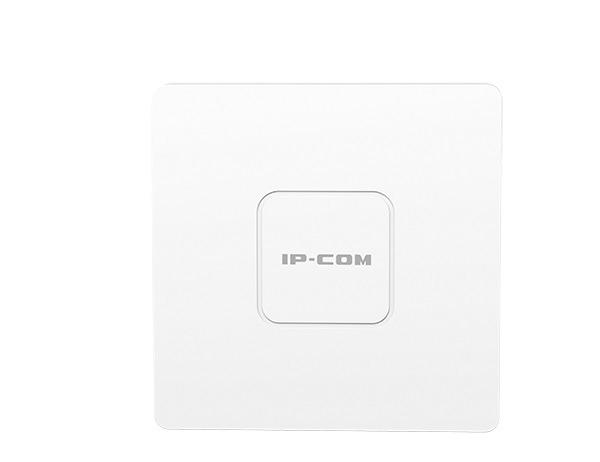

AC1200 Wave 2 Gigabit Access Point IP-COM W63AP
- IP-COM W63AP là thiết bị phát sóng Wifi gắn trên trần.
- Băng tần: 2.4GHz + 5Ghz.
- Tốc độ không dây: 300Mbps (2.4GHz) + 867Mbps (5Ghz).
- SSID: 12.
- Chuẩn: IEEE 802.11b/g/n/ac.
- Kích thước: 178x178x38 mm.
Đặc tính kỹ thuật
| Model | W63AP |
| Appearance | Ceiling |
| Dimensions | 178 mm x 178 mm x 38 mm |
| Hardware Features | |
| Frequency band | 2.4 GHz, 5 GHz |
| Wireless standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| 2.4 GHz data rate | 1 - 300 Mbps |
| 5 GHz data rate | 6 - 867 Mbps |
| Ethernet port | 1 x10/100/1000 Base-TX port |
| Button | 1 x Reset |
| LED indicator | 1 x Power |
| Max. power consumption | Full-load 13.5W |
| Power supply standard | IEEE 802.3at |
| Software Specification | |
| Operating modes | AP, Client + AP |
| Hide SSID | Supported |
| Max. No. of SSID | 2.4 GHz: 8 5 GHz: 4 |
| Max. connected clients | 2.4 GHz: 128 5 GHz: 128 |
| WEP | Supported |
| WPA-PSK | AES/TKIP |
| WPA2-PSK | AES/TKIP |
| WPA | Supported |
| WPA2 | Supported |
| Access control | MAC address-based |
| Adjustable power transmit | Supported |
| Frequency Analysis | Supported |
| AP isolation | Supported |
| Connected clients control | Supported |
| RSSI Threshold | Supported |
| WMM | Supported |
| VLAN tagging for SSID | Supported |
| Antenna gain | 4 dBi |
| 2.4 GHz Max output power | 23 +/- 1.5 dBm |
| 5 GHz Max output power | 23 +/-1.5 dBm |
| 802.11b RX sensitivity | -93 dBm |
| 2.4 GHz 802.11n (MCS7) RX sensitivity | -72 dBm |
| 5 GHz 802.11a RX sensitivity | -93 dBm |
| 5 GHz 802.11n (MCS7) RX sensitivity | -74 dBm |
| LED control | Supported |
| Diagnostics Tool | Ping, Traceroute |
| Scheduled reboot | Supported |
| Reboot at specified interval | Supported |
| Management | Web UI |
| System logs | Supported |
| Firmware Upgrade | Local and AC upgrade |
| Reboot | Local and AC reboot |
| Reset | Local and AC reset |
| Backup configuration | Supported |
| Restore configuration | Supported |
| Operating Environment | |
| Default login IP address | 192.168.0.254 |
| Default user name | Admin |
| Default password | Admin |
| Operating temperature | -10℃ - 45℃ |
| Operating humidity | (10%－90%) RH, non-condensing |
| Storage temperature | -30℃ - 70℃ |
| Storage humidity | (10%－90%) RH, non-condensing |
| Packaging | |
| Giftbox | Yes |
| Wireless ceiling AP | 1 |
| Bracket | 1 |
| Plastic nut | 4 |
| Plastic anchor | 4 |
| Screw | 4 |
| Quick installation guide | 1 |
| GPL | 1 |
| Certificates | |
| Certificates | CEFCCRoHS |
- Bảo hành: 24 tháng.
