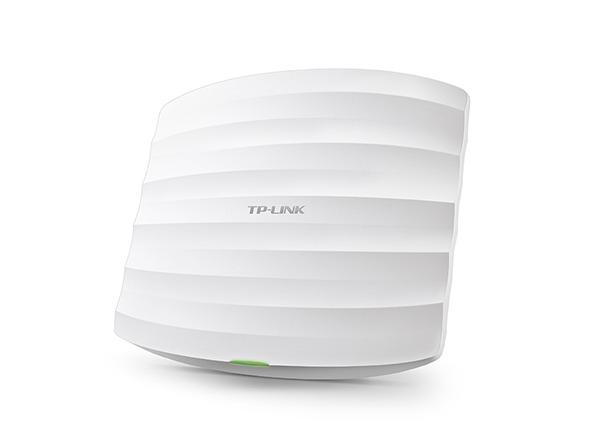

AC1350 Wireless Dual Band Gigabit Ceiling Mount Access Point TP-LINK EAP225
- Điểm truy cập không dây gắn trần băng tần kép AC1350.
- Tốc độ 300Mbps ở băng tần 2.4GHz + 867Mbps ở băng tần 5GHz.
- Hỗ trợ Wifi chuẩn 802.11a/b/g/n/ac.
- Kết nối: 1 cổng LAN Gigabit.
- Hỗ trợ cấp nguồn qua mạng PoE 802.3af.
- Quản lý tập trung, Captive Portal, Multi-SSID, 4 ăng ten ngầm.
Đặc tính kỹ thuật
| Model | EAP225 |
| Hardware Feautures | |
| Interface | Gigabit Ethernet (RJ-45) Port *1 (Support IEEE802.3af PoE) |
| Button | Reset |
| Power Supply | PoE or External 12VDC/ 1.5A |
| Power Consumption | 10.15W |
| Dimensions | 180 x 180 x 47.5 mm |
| Antenna Type | Internal Omni 2.4GHz: 2* 4dBi 5GHz: 2* 4dBi |
| Mounting | Ceiling/Wall Mounting (Kits included) |
| Physical Security Lock | Kensington Lock Slot |
| Watch Dog | Yes |
| Wireless Features | |
| Wireless Standards | IEEE 802.11ac/n/g/b/a |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 5GHz: 867Mbps 2.4GHz: 300Mbps |
| Wireless Functions | Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS (WMM) Band Steering Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/ AP/ Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless MAC Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/ 128/ 152-bit WEP/ WPA/ WPA2-Enterprise, WPA-PSK/ WPA2-PSK |
| Management | |
| Support | EAP Controller Software, Email Alerts, LED ON/OFF Control, Management MAC Access Control, SNMP, Telnet, L3, Multi-site, VLAN |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| Web-based Management | HTTP/HTTPs |
- Hàng chính hãng TP-LINK.
- Bảo hành 12 tháng.
