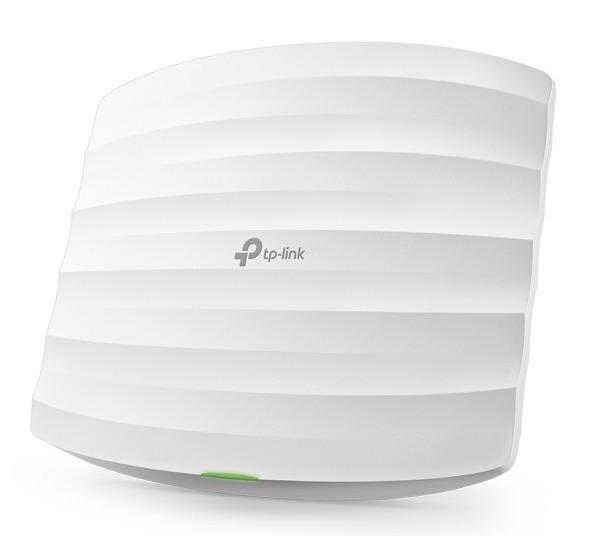

AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point TP-LINK EAP265 HD
- Fast Dual-Band Wi-Fi: Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds.
- High-Density Connectivity: MU-MIMO, Load Balance, and professional antennas improve capacity in high-density environments to connect more devices simultaneously.
- Integrated into Omada SDN: Supports Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
- PoE Support: Supports both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/Voucher, etc.) and abundant wireless security technologies.
Đặc tính kỹ thuật
| Model | EAP265 HD |
| HARDWARE FEATURES | |
| Interface | 2 × Gigabit Ethernet (RJ-45) Port (One port supports IEEE802.3af/at PoE and Passive PoE) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3af/at PoE 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Power Consumption | 12.3W |
| Dimensions ( W x D x H ) | 8.1 × 7.1 × 1.5 in (206 × 182 × 37 mm) |
| Antenna Type | Internal Omni - 2.4 GHz: 3× 3.5 dBi - 5 GHz: 3× 4 dBi |
| Mounting | Ceiling/Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ac/n/g/b/a |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | - 5GHz: Up to 1300 Mbps - 2.4GHz: Up to 450 Mbps |
| Wireless Functions | - Multiple SSIDs (Up to 16 SSIDs, 8 for each band) - Enable/Disable Wireless Radio - Automatic Channel Assignment - Transmit Power Control (Adjust Transmit Power on dBm) - QoS(WMM) - MU-MIMO - Seamless Roaming - Band Steering - Load Balance - Airtime Fairness - Beamforming - Rate Limit - Reboot Schedule - Wireless Schedule - Wireless Statistics based on SSID/AP/Client |
| Wireless Security | - Captive Portal Authentication - Access Control - Wireless Mac Address Filtering - Wireless Isolation Between Clients - SSID to VLAN Mapping - Rogue AP Detection - 802.1X Support - 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| Transmission Power | 2.4GHz: 24 dBm max. 5GHz: 24 dBm max. |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | - Omada Cloud-Based Controller - Omada Hardware Controller (OC300) - Omada Hardware Controller (OC200) - Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
| Certification | FCC, RoHS |
| Package Contents | - AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP265 HD - Gigabit Passive PoE Adapter - Power Cord - Mounting Kits - Installation Guide |
| Environment | - Operating Temperature: 0–40 ℃ (32–104 ℉) - Storage Temperature: -40–70 ℃ (-40–158 ℉) - Operating Humidity: 10–90% RH non-condensing - Storage Humidity: 5–90% RH non-condensing |
- Hàng chính hãng TP-LINK.
- Bảo hành 12 tháng.
