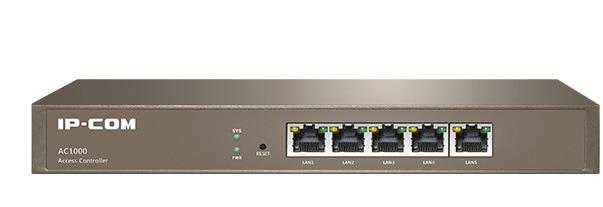

Access Point Controller Switch IP-COM AC1000
- Cổng kết nối: 5 cổng LAN 10/100/100Mbps.
- Tiêu chuẩn: IEEE 802.3u/ab.
- Số lượng quản lý Access point: 128 Aps.
- RAM: 128MB.
- Flash: 16MB.
Đặc tính kỹ thuật
| Model | AC1000 |
| Product Information | |
| Deployment | Ceiling and Wall Mount |
| Dimensions (L x W x H) | 210 x 130 x 30 mm |
| Application Scenarios | Budget hotels, K-12 schools etc SMB |
| Hardware Specifications | |
| Standards | IEEE 802.3u/ab |
| Interfaces | 5x10/100/1000Mbps LAN |
| LEDs | SYS, POWER, RESET |
| CPU | 800MHz Broadcom ARM |
| RAM | 128MB |
| Flash | 16MB |
| Max Power Consumption | 9W |
| Software Specification | |
| Default AP managed number | 64 |
| Max AP managed number | 128 |
| Wireless Features Management | Access Point Auto Discovery Access Point Auto IP Assignment Access Point Device Name Editing Access Point SSID Editing Access Point Client Limit Editing Access Point output power Editting Access Point Security Editting (None,WPA-PSK,WPA2-PSK) Access Point isolation Editting Access Point SSID isolation Editting Access Point channel Select VLANs for Access Point-Multiple SSIDs 5G Band Steering editting Client isolation editting SSID isolation editting RSSI threshold for client access editting Monitor the AP online status Wireless Client Monitoring Batch AP Reset capability Batch AP reboot capability batch Firmware Upgrade Capability Schedule reboot AP capability AP failure alarm AP traffic alarm AP clients limit alarm AP&am;clients list export |
| System Tools | IP Setting System Time&Date Firmware upgrade Configurating backup and restore Device Reboot Username and password System log |
| Operating Environment | |
| Operating Temperature | -10℃-45℃ |
| Storage Temperature | -30℃-70℃ |
| Operating Humidity | 10%－90%(non-condensing) |
| Storage Humidity | 5%－90%RH(non-condensing) |
| Default Login IP | 192.168.10.1 |
| Default username | admin |
| Default Password | admin |
| Certification | CCC/FCC/CE/ROHS |
- Bảo hành: 24 tháng.
