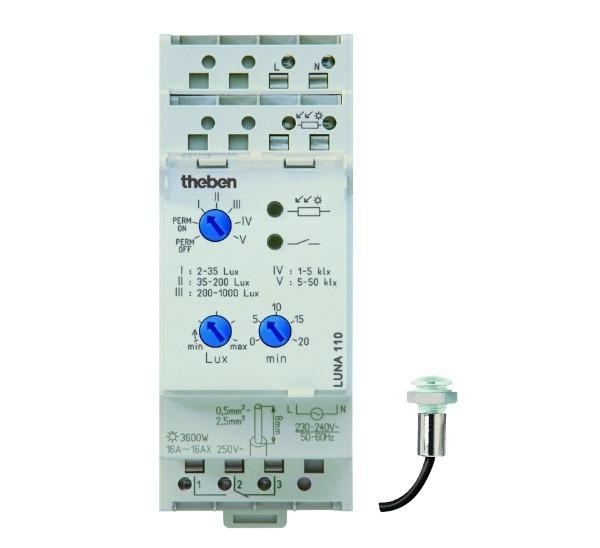

Analogue Twilight Switch THEBEN LUNA 110 EL 24V
- Part Number: 1104200.
- Analogue twilight switch.
- External light sensor included in delivery.
- Adjustable On and Off switching delay
+ to avoid faulty operation caused by lightning, car headlights etc.
- Display of channel and switching status.
- DuoFix spring terminals
+ for 2 conductors per connection terminal.
- Extended brightness levels and adjustable delay.
- Five adjustable brightness levels for simple setting of lux value.
- Zero-cross switching for relay-saving switching and high lamp loads (not with 24 V devices)
- Permanent OFF and permanent ON function can be set on the potentiometer
- Test function.
+ for monitoring installation independent of set brightness value.
- Infinitely adjustable switching brightness.
Đặc tính kỹ thuật
| Model | LUNA 110 EL 24V |
| Operating voltage | 12 – 24 VUC |
| Frequency | 50 – 60 Hz |
| Number of channels | 1 |
| Stand-by consumption | ~0,2 W |
| Setting range brightness | 2 – 50000 lx |
| Switch-on delay | 0 – 20 min |
| Switch-off delay | 0 – 20 min |
| Type of contact | Changeover contact |
| Switching output | Potential-free |
| Width | 2 modules |
| Installation type | DIN rail |
| Type of connection | DuoFix spring terminals |
| Keyboards | 3 potentiometers |
| Switching capacity | 16 A (at 250 V AC, cos φ = 1), 2 AX (Fluorescent lamp load) |
| Switching capacity min. | <10 mA |
| Incandescent lamp load | 1400 W |
| Halogen lamp load | 1400 W |
| Fluorescent lamp load (conventional) parallel-corrected | 58W-7µF |
| LED lamp < 2 W | 6 W |
| LED lamp 2-8 W | 20 W |
| LED lamp > 8 W | 24 W |
| Energy saving lamps | 45 W |
| Fluorescent lamp load (electronic ballast) | 180 W |
| Lichtsensor | 24 V UC | Flush-mounted light sensor |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Ambient temperature | -30 °C … +55 °C |
| Type of protection | IP 20, sensor IP 65 |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
