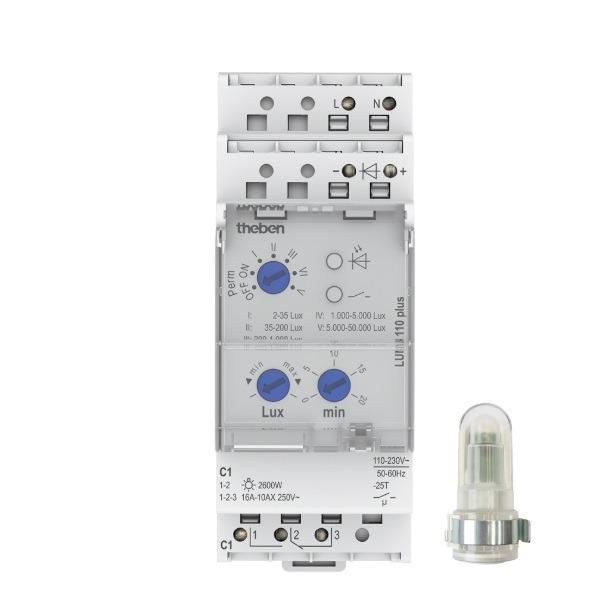

Analogue Twilight Switch THEBEN LUNA 110 plus AL
- Part Number: 1100910.
- Analogue twilight switch.
- Comes with an external light sensor.
- Adjustable On and Off switching delay.
- Display of channel and switching status.
- DuoFix load line connections.
- Extended brightness level and adjustable delay time.
- Zero-cross switching to avoid wear and tear to relay contact and lamp for prolonged service life.
- Permanent OFF and permanent ON function can be set on the potentiometer.
- Test function.
- Freely adjustable switching brightness.
Đặc tính kỹ thuật
| Model | LUNA 110 plus AL |
| Operating voltage | 110–230 V AC |
| Frequency | 50–60 Hz |
| Standby output | 0.4 W |
| Brightness setting range | 2–50,000 lx |
| Switch-on delay | 0–20 min |
| Switch-off delay | 0–20 min |
| Connection type | Load line connections |
| Width | 2 HP |
| Sensor (included) | Surface-mounted light sensor |
| Protection rating | IP 20, sensor IP 55 |
| Switching capacity | 16 A (at 250 V AC, cos φ = 1), 16 AX (fluorescent lamp load) |
| Incandescent/halogen lamp load | 2600 W |
| LED lamp < 2 W | 50 W |
| LED lamp > 2 W | 600 W |
| Ambient temperature | –25 °C … +55 °C |
| Protection class | II |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
