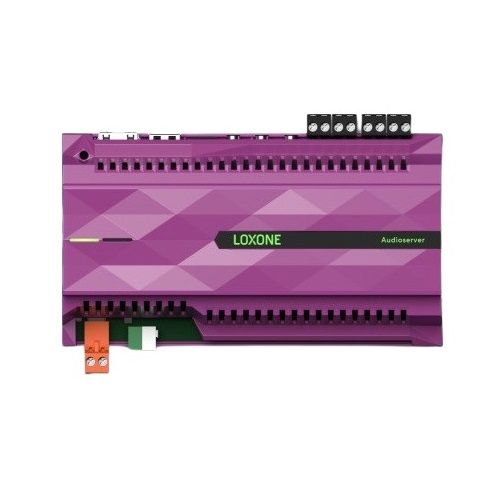

Audioserver LOXONE (100428)
Part Number: 100428
- Nguồn cấp: 18 ~ 26VDC, IP10
- Phát nhạc qua Spotify, TuneIn, AirPlay 2, SD Card, USB, Line-In, Network
- Loại file: MP3, AAC, ALAC, Flac, WMA, WMA lossless, WAV, M4A, OGG
- Kết nối lên đến 10 module mở rộng, chiều dài dây đến 150m
- LAN: 100Mbps, IPv4 / IPv6, SSL
- USB 2.0: Loại A, tối đa 500mA
- Output: 4x Loa 4...8Ωr, 1x SPDIF out (digital, electrical), 1x Line-out (analog)
- Input 1x Line-in (analog)
- Nhiệt độ môi trường hoạt động: 0 ~ 50°C
- Loại: DIN rail theo chuẩn EN50022, 35mm
- Kích thước: 157x88x57mm
- Chứng nhận: UL62368-1 IEC62368-1, Intertek, CE
Thông số kỹ thuật
| Technical Data | |
| Power supply | 18 ~ 26VDC |
| Power consumption | typ. 2.16W(standby), min. 72W power supply unit recommended |
| Nominal power with testsignal | 24VDC: 110W; (setup: 100% load, Vin=0.77Vrms /1kHz - Normal operation), max. 162.7W peak |
| Power loss at max. load | 6.7W |
| Outputs | 4x Speaker out 4 ... 8Ω, sample rate: 44,1kHz 1x SPDIF out (digital, electrical), sample rate: 48kHz 1x Line-out (analog), sample rate: 44,1kHz |
| Input | 1x Line-in (analog) sample rate: 44,1kHz |
| Interfaces | Tree Turbo: Connect up to 10 Stereo Extensions up to 150m wire length LAN: 100Mbps, IPv4/IPv6, SSL USB 2.0: Type A, max. 500mA |
| Ambient temperature | 0 ~ 50°C |
| Humidity | max. 95% r.H. (non condensing) |
| Music Playback | |
| Streaming | AirPlay 2, Spotify, TuneIn, internet streaming services, NAS |
| External sources | Line-In (analog) |
| Compatible USB Drives | USB Sticks: FAT32, single partition, max. 512GB USB Harddrives: FAT32/NTFS/EXT3/EXT4 max. 1TB, max. 500mA |
| Audio - filetypes Sample rate | MP3, AAC, ALAC, Flac, WMA, WMA lossless, WAV, M4A, OGG up to 192kHz |
| Amplifier | |
| Type | Class D |
| Allowed speaker impedance | 4 ~ 8Ω |
| Frequency response | 20Hz ~ 20kHz |
| Max. peak power (per channel) | 50W (x4) |
| Max. RMS power (per channel) | 18W (x4) |
| Product Characteristics | |
| Mounting type | DIN rail according to EN50022, 35mm |
| Color | Purple |
| Finish | Matte |
| Weight | 225g |
| Dimensions | 157x88x57mm |
- Bảo hành: 24 tháng.
