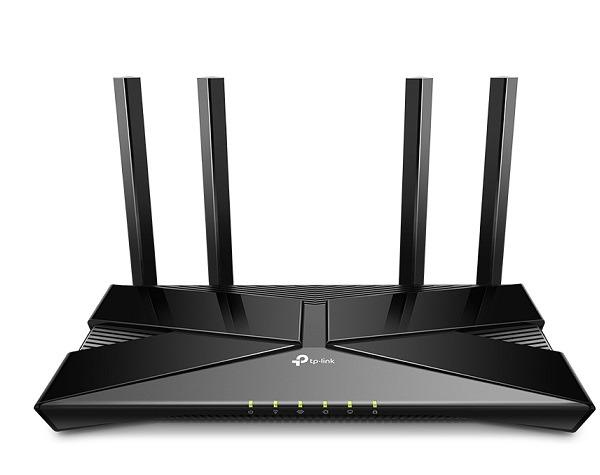

AX1800 Dual-Band Wi-Fi 6 Router TP-LINK Archer AX20
- Dual-Band Wi-Fi 6: Equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
- Next-Gen 1.8Gbps Speeds: Enjoy smooth streaming, downloading, and gaming all without buffering with Wi-Fi speeds of 1.8Gbps.
- Connect More Devices: Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA technology while simultaneously reducing lag.
- Quad-Core Processing: The 1.5GHz quad-core CPU ensures communications between your router and all connected devices are smooth.
- Extensive Coverage: Beamforming, independent FEM, and four antennas combine to deliver focused reception to devices far away.
- Increased Battery Life: Target Wake Time technology reduces your devices' power consumption to extend their battery life.
- USB Easy Sharing: A USB 2.0 Port enables easy file sharing within your network or building private Cloud Storage.
- Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App.
- Backward Compatible: Supports all previous 802.11 standards and all Wi-Fi devices.
Specifications
| Model | Archer AX20 |
| Wireless | |
| Standards | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range | Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage |
| WiFi Capacity | Dual-Band Allocate devices to different bands for optimal performance OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation 4 Streams Connect your devices to more bandwidth |
| Working Modes | Router Mode Access Point Mode |
| Hardware | |
| Processor | 1.5 GHz Quad-Core CPU |
| Ethernet Ports | 1× Gigabit WAN Port 4× Gigabit LAN Ports |
| USB Support | 1× USB 2.0 Port Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: Apple Time Machine FTP Server Media Server Samba Server |
| Buttons | WPS/Wi-Fi Button Power On/Off Button LED On/Off Button Reset Button |
| Power | 12V/1.5A |
| Secutity | |
| WiFi Encryption | WPA WPA2 WPA3 |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Guest Network | 1× 5GHz Guest Network 1× 2.4GHz Guest Network |
| VPN Server | OpenVPN PPTP |
| Software | |
| Protocols | IPv4 IPv6 |
| OneMesh™ | V1.0 only OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products |
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link NO-IP DynDNS |
| Management | Tether App Webpage |
| Physical | |
| Dimensions (W×D×H) | 10.2 × 5.3 ×1.5 in (260.2 × 135.0 × 38.6 mm) |
| Package Contents | Wi-Fi Router Archer AX20 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| Other | |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Test Data | |
| WiFi Transmission Power | FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
- Hàng chính hãng TP-LINK.
- Bảo hành: 12 tháng.
