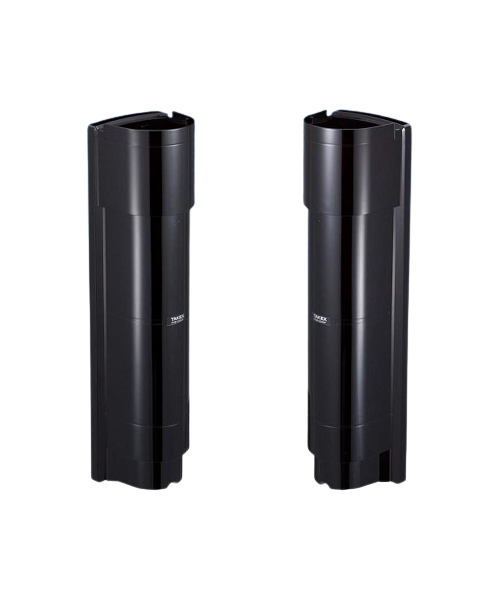

Battery Operated Photoelectric Beam Sensor TAKEX TXF-125E
- Synchro-quad beam for outdoor, 100m range, battery operated. Battery & transmitter are not included.
- Long Battery Life
+ Approx. 5 years of battery life is possible with 4 pcs of recommended battery.
+ Possibility of longer battery life with extra batteries. (Max. additional 4 pcs).
- Battery Sharing Function
+ This function is integrated in the sensor to enable sharing battery with universal wireless transmitter.
+ Low battery output voltage is adjustable with volume switch.
- Detection Distance Selectable: 4 detection distance are selectable with a single unit [330'(100m)/245'(75m)/165'(50m)/82'(25m)].
- Lightning Protection: This unit is insusceptible to induced lightning because of its battery operated system.
- Wide Beam: With wider pitch between upper and lower beams, false alarms initiated by birds and falling leaves are drastically reduced.
- IP65 Highest Rating Protection: In addition to wireless configuration, water tight bushings and seals maintain integrity of the device from water, insects and dust.
- Dual Ring Sight: Enables better and clearer view for easy beam alignment.
- Bi Directional Wireless Alignment: Even one person can accomplish system alignment easily to dramatically save the labor cost. (sold separately)
Specification
| Model | Battery Operated Photoelectric Beam Senor |
| Model number | TXF-125E |
| Detection system | Near infrared pulsed beam interruption system (TR-RE 4 beam simultaneous interruption) |
| Infrared beam | Single modulation pulsed beam by LED (near infrared beam light-emitting diode) |
| Protection distance | Outdoor 330'(100 m) or less |
| Protection distance setting | 82'(25m), 165'(50m), 247'(75m), 330'(100m) (4 distances selectable) |
| Distance margin (maximum arrival distance) | 10 times 3300'(1000m) |
| Response time | 0. 05sec., 0.1sec., 0.25sec., 0.5sec. (4-level changeover) |
| Modulated beam frequency selection | 4 channels |
| Power supply voltage | 3.6VDC (recommended battery: SAFT lithium thionyl chloride battery LS33600) |
| Current sonsumptio | 750μA - Transmitter : Approx.430μA (during protection) - Receiver : Approx.320μA (during protection) (nomal temperature,3.6VDC) |
| Battery life | - Transmitter: Approx. 5 years (at normal temperature, with 2 recommended batteries, excluding a wireless transmitter) - Receiver: Approx. 5 years (detects 100 times a day, at normal temperature, with 2 recommended batteries, excluding a wireless transmitter) |
| Alarm Output (Receiver only) | Dry contact relay output form C 30VDC 0.1A (resistive load) |
| Enviroment Output (Receiver only) | Dry contact relay output form C 30VDC 0.1A (resistive load) |
| Low Battery Output (Transmitter and Receiver) | Dry contact relay (N.C) 30VDC 0.1A (resistive load) |
| Tamper Output (Transmitter and Receiver) | Dry contact relay (N.C) 30VDC 0.05A (resistive load) |
| Power Output (Transmitter and Receiver) | 3.0VDC 50mA MAX |
| Beam adjustment | Horizontal: ±90°, Vertical: ± 20° |
| Alarm LED | Red LED (Receiver) ON: when an alarm is initiated |
| Attenuation LED | Red LED (Receiver) ON: when beam is attenuated |
| Ambient temperature | –13°F to+140°F (–25°C to+60°C) (No freezing or condensation) (The battery function may decrease at 0°C or less, or +40°C or more) |
| Functions | Sound check, Monitor jack Upper/lower beam switch Low battery indication Wireless alignment checker connection Battery saving, Repeat output, Battery sharing |
| IP rating | IP65 |
| Mounting position | Outdoor, Indoor |
| Weight | Transmitter: 52.5oz (1500g) (excluding batteries) Receiver: 54.3oz (1550g) (excluding batteries) |
| Appearance | Cover: PC resin Wine red Base: ASA resin Black |
- Bảo hành: 12 tháng.
