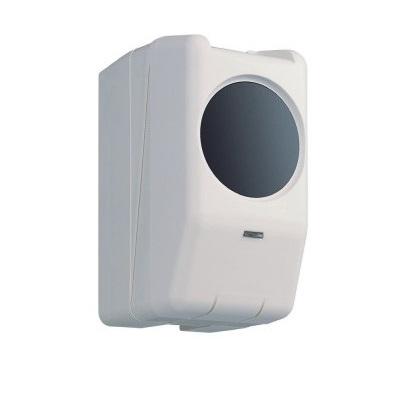

Beam Type Smoke Detector NITTAN CKLD-KPT
- The CKLD-KPT is a conventional beam type smoke detector that comprises of an infra-red transmitter and a receiver.
- 5m to 100m protection range.
- 3 selectable alarm thresholds: 30%, 40% or 65%.
- Compact housing fitting surroundings.
- Easy alignment procedure via optical sights and signal strength indicators.
- 0.76 mA low current consumption.
- Adjustable light intensity.
- 14.5 VDC to 30 VDC operation.
- Automatic drift compensation.
- Alarm signal (at least 30% of obsculation).
- Trouble signal (50% of original intensity level).
- Remote test station option.
Thông số kỹ thuật
| Model | CKLD-KPT |
| Description | Beam Type Smoke Detector |
| Rated Voltage | 24 VDC |
| Operating Voltage | 14.5 VDC to 30 VDC |
| Alarm Current | L-C:65 mA K-KC:65 mA |
| Standby Current | 760 µA |
| Range | 5 m to 100 m |
| Sensitivity | 5m-15m: 30% 15m-40m: 40% 40m-100: 65% |
| Adjustment Angle | +/-10 degrees horizontal and vertical |
| Operating Temperature | -10℃ to +50℃ |
| Rerative Humidity | 0% to 95% RH, non-condensing |
| Body Material | Flame Retardant ABS |
| Body Color | A22-90B (Ivory) |
| Weight | Transmitter: 485 g (with Base) Receiver: 506 g (with Base) |
- Bảo hành: 12 tháng.
