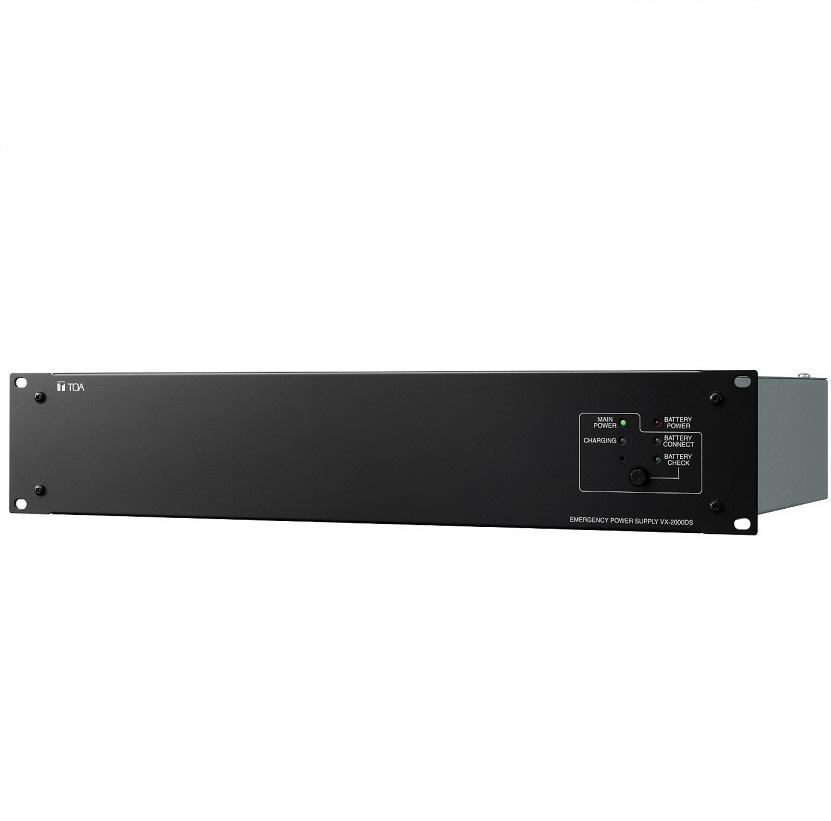

Bộ cấp nguồn khẩn cấp TOA VX-2000DS
The VX-2000DS Emergency Power Supply Unit supplies the DC power to each equipment in the VX-2000 system by connecting the VX-200PS Power Supply Unit. It keeps the battery unit that contains 2 x 12V sealed lead batteries charged compensating for the temperature of the battery charging voltage. When the DC power supply from the VX-200PS stops, the VX-2000DS is automatically switched to the backup battery.
Specifications
| Model | VX-2000DS |
| Power Source | 230 VAC, 50/60 Hz |
| Power Consumption | 240 W max. |
| Applicable Battery | Panasonic LC-X1265PG/APG (65 Ah) |
| Charging Method | Trickle charging |
| Charging Current | 5 A max. |
| Charging Output Voltage | 27.3 V ±0.3 V Temperature correction coefficient: -40 mV/ºC |
| Power Supply Input | 6 M4 screw terminal, distance between barriers: 11 mm |
| DC Power Output | 6 (25 A max. each) M4 screw terminal, distance between barriers: 11 mm |
| Control Connector | RJ45 female connector for connecting the VX-2000SF Surveillance Frame. Twisted-pair straight cable Type of control signal: Battery check, AC power status, DC power status, charging circuit failure, and battery failure |
| Operating Temperature | 0ºC to +40ºC |
| Finish | Panel: Surface-treated steel plate, black, 30 % gloss, paint |
| Dimensions | 482 x 88.4 x 377.6 mm |
| Weight | 10.5kg |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
