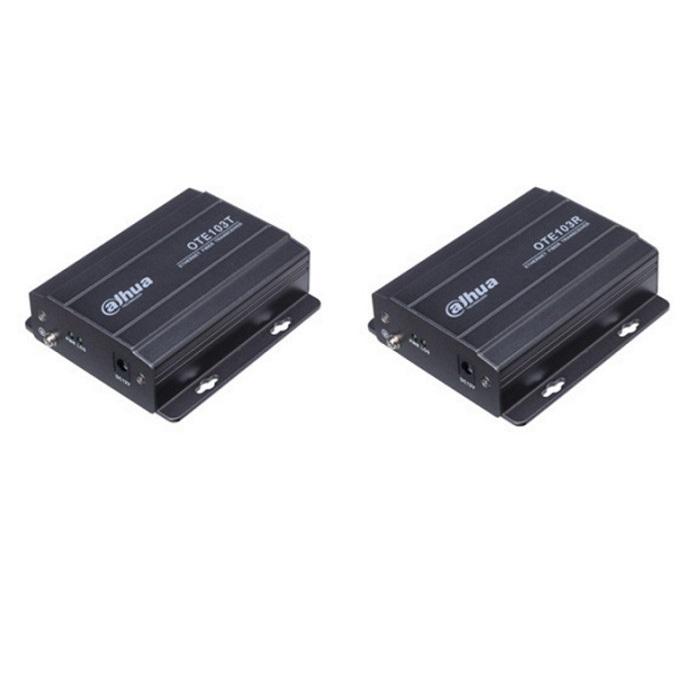

Bộ chuyển đổi quang điện DAHUA OTE103T/OTE103R
-1 channel 10/100M Ethernet transmission on single-mode fiber.
-IEEE802.3U, IEEE802.3X standards.
-10/100Mbps self-adaptive network signal transmission.
-Full/ Half work.
-UPnP, easy installation, industrial-level design.
-Optical fiber default distance is 20km, 40km and 80km are optional.
-LED status indicator displays working status of transceiver.
-Wide-range temperature application: -40ºC ~75ºC.
-Thiết bị chuyển đổi quang điện 1 cổng, 1 cổng RJ45.
-Nguồn điện: 12VDC.
Đặc tính kỹ thuật
| Model | DH-OTE103T/R |
| Optical Index | |
| Physical Port | FC port, Single-mode fiber |
| Transmission Distance | 0-20km |
| Input/ Output Wave Length | Transmitter (OTE103T): 1310nm transmit 1550nm receive |
| Receiver (OTE103R): 1550nm transmit 1310nm receive | |
| Network Index | |
| Physical Port | RJ45; 10/100M self-adaptive Ethernet |
| Network Standard | IEEE802.3U, IEEE802.3X standards |
| Other | |
| Indicator | Light linker indicator, power indicator |
| Power | 12VDC/ 1A |
| Power Consumption | ≤3.5W |
| Temperature | -40ºC ~75ºC |
| Humidity | 10%~90% RH |
| Dimension | 104.6 x 96.2 x 29.5mm |
| Weight | 200g |
-Sản xuất tại Trung Quốc.
-Bảo hành: 24 tháng.
