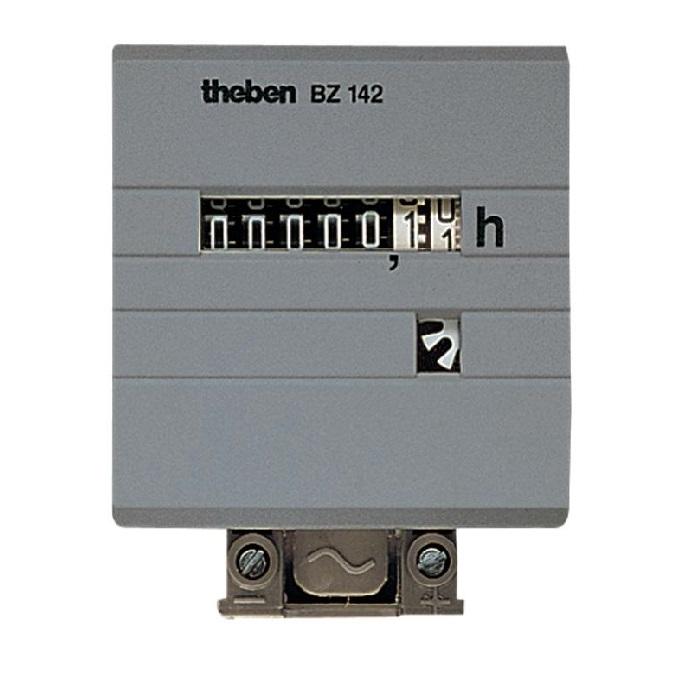

Bộ đếm giờ THEBEN BZ 142-3 10V
- Hour counter with synchronous motor drive.
- With plug-in base for wall installation (terminal cover required).
- Plug-in base with quick fastening for 35 mm profile rails (DIN EN 60 715).
- Screw terminals.
- Contact protection to comply with accident prevention regulation BGV A3.
- Housing colour: Anthracite.
- Versions for direct voltage with quartz-controlled stepper motor.
- Progress display.
Specifications
| Model | BZ 142-3 10V |
| Operating voltage | 10 – 80 VDC |
| Installation type | Front panel installation |
| Size front plate | 48 x 48 mm |
| Size of Installation section | 46 x 46 mm |
| Counting range | 99 999,99 hours without reset |
| Type of protection | IP 65 (Front frame) |
| Protection class | II according to EN 60 335-1 |
| Ambient temperature | -20°C … +70°C |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
