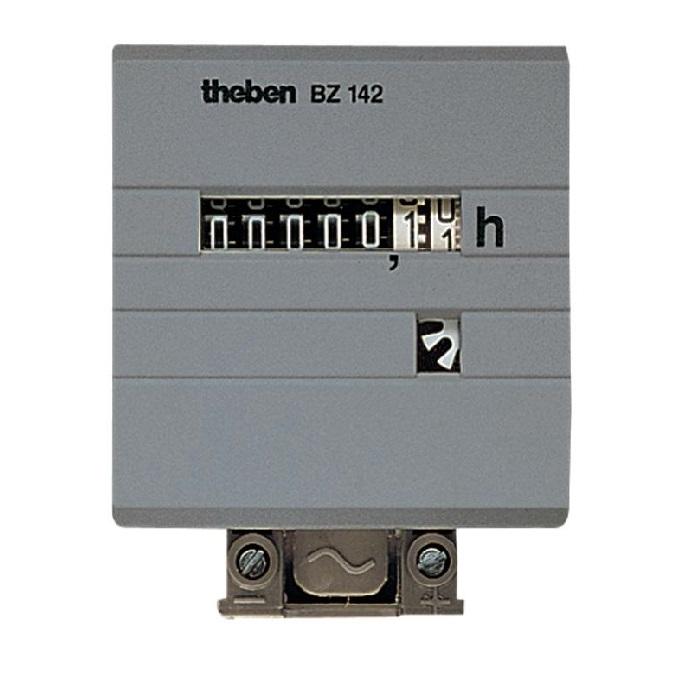

Bộ đếm giờ THEBEN BZ 142-3
- Hour counter with synchronous motor drive
- With plug-in base for wall installation (terminal cover required)
- Plug-in base with quick fastening for 35 mm profile rails (DIN EN 60 715)
- Screw terminals
- Contact protection to comply with accident prevention regulation BGV A3
- Housing colour: anthracite
- Versions for direct voltage with quartz-controlled stepper motor
- Progress display
Specifications
Operating voltage | 230 V AC |
Frequency | 50 Hz |
Installation type | Front panel installation |
Size front plate | 48 x 48 mm |
Size of Installation section | 46 x 46 mm |
Counting range | 99 999,99 hours without reset |
Type of protection | Front frame IP 65 |
Protection class | II as per EN 60 335-1 |
Ambient temperature | -20 °C ... +70 °C |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
