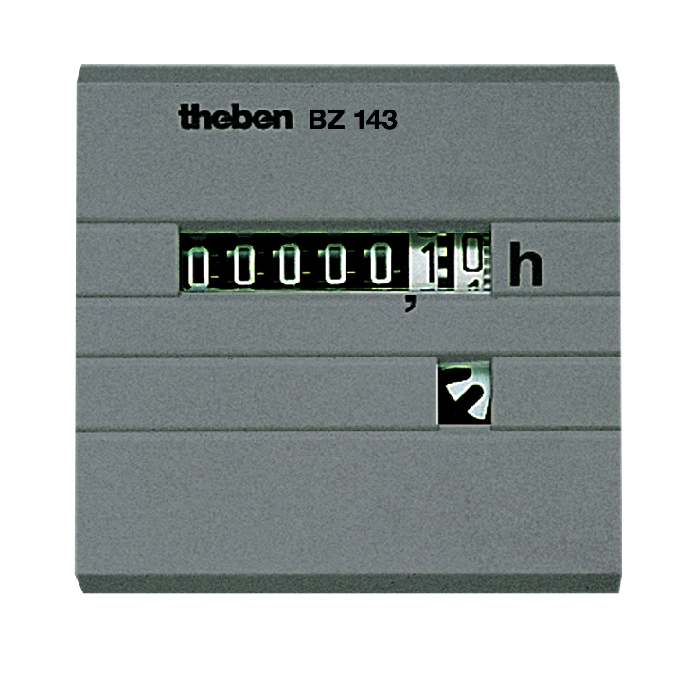

Bộ đếm giờ THEBEN BZ 143-1
- Hour counter with synchronous motor drive
- Front panel devices with click-in or stretch clamp supports for walls up to a maximum of 10 mm thick
- Clamp or flat plug connection 6.3 mm
- Versions for direct voltage with quartz-controlled stepper motor
- Progress display
Specifications
Operating voltage | 230 V AC |
Frequency | 50 Hz |
Installation type | Front panel installation |
Size front plate | 52 x 52 mm |
Size of Installation section | 46 x 46 mm or 50 mm |
Counting range | 99 999,99 hours without reset |
Type of protection | Front frame IP 65 |
Protection class | II as per EN 60 335-1 |
Ambient temperature | -20 °C ... +70 °C |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
