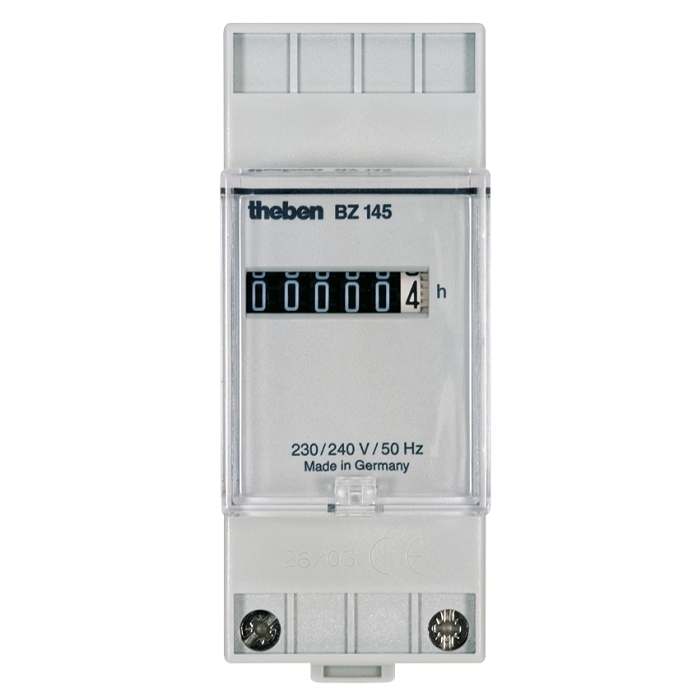

Bộ đếm giờ THEBEN BZ 145
- Hour counter with synchronous motor drive
- Built in distributor device with quick fastening for 35 mm profile rails (DIN EN 60 715)
- Top mounting with additional terminal box cover plate, sealable
- Control panel installation with assembly kit No. 907 0 001
- Contact protection to comply with accident prevention regulation BGV A3
- Captive screw terminals
Specifications
Operating voltage | 230 V AC |
Frequency | 50 Hz |
Width | 2 modules |
Installation type | DIN rail |
Size front plate | 35 x 45 mm |
Size of Installation section | 35 x 45 mm (depth 60 mm) |
Counting range | 99 999,9 hours without reset |
Type of protection | IP 20 |
Protection class | II as per EN 60 335-1 |
Ambient temperature | -10 °C ... +70 °C |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
