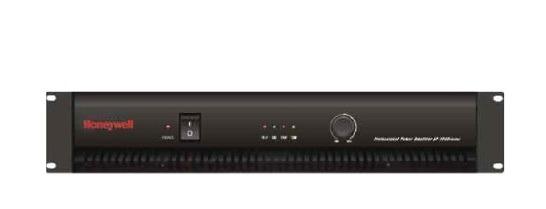

Bộ khuếch đại công suất 480W Honeywell HN-A480
- 100V and 4-16 Ohms transformer isolated speaker outputs
- Combination XLR / RCA Line In and Line OUT connectors
- LED status indicators
- Speaker output short circuit protection
Specifications
| Model | HN-A480 |
| Rated Power | 480W |
| Speaker Output | 4~16Ω Low-Z output 480W,70V(10.7Ω) 100V (21.7Ω) |
| Line Input | <1 V, unbalanced |
| Line Output | 1V unbalanced |
| Damping Factor | 200 |
| Frequency Response | 60 Hz~15 kHz (± 3 dB) |
| THD | <0.5 % at 1 kHz, 1/3 rated power |
| S/N | >80dB |
| Controls | Volume control and power switch |
| Cooling | DC12V fan, extensive heat sinking |
| Indicators | Power, Clip, Signal, Protect, and Temp |
| Protection | AC Fuse × 15 A AC FUSE×1, Current limiter, short circuit and thermal protection circuits |
| Power Cable | (3×1.5mm²)×1.5M (standard) |
| Power Requirement | 220 VAC/ 50 Hz |
| Power Consumption | 620W |
| Dimensions | 89 (H) × 483 (W) × 366(D) mm |
| Weight | 19.3Kg |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
