Bộ KIT camera IP HILOOK IK-4042BH-MH/P

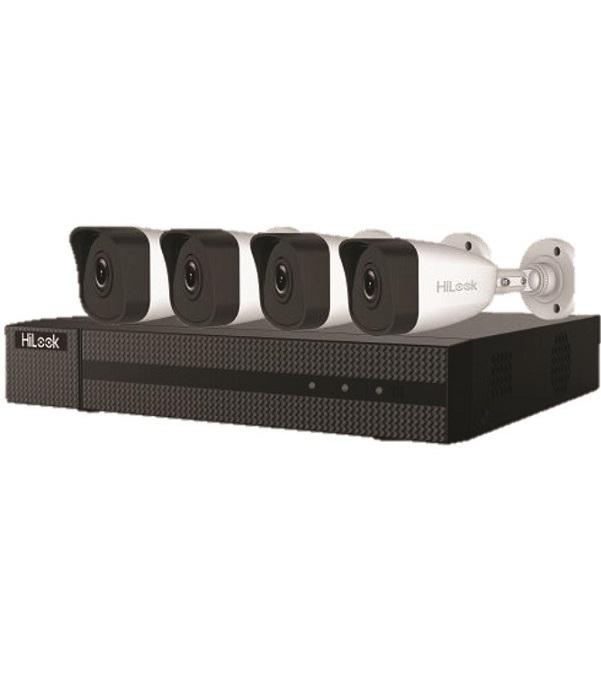

- Bộ KIT Camera IP HILOOK IK-4042BH-MH/P bao gồm: 4 Camera IP hồng ngoại 2.0 Megapixel HILOOK IPC-B121H, 1 Đầu ghi hình camera IP 4 kênh HILOOK NVR-104MH-D/4P và 1 HDMI Cable 2 mét.
- Camera IP hồng ngoại 2.0 Megapixel HILOOK IPC-B121H:
+ Cảm biến hình ảnh: 1/2.8-inch Progressive Scan CMOS.
+ Độ phân giải: 2.0 Megapixel.
+ Chuẩn nén hình ảnh: H.265+; H.265; H.264+; H.264; MJPEG.
+ Hỗ trợ chức năng giảm nhiễu số 3D-DNR, bù sáng BLC.
+ Chức năng cấp nguồn qua Ethernet PoE.
+ Nguồn điện: 12VDC.
- Đầu ghi hình camera IP 4 kênh HILOOK NVR-104MH-D/4P:
+ Băng thông đầu vào: Tối đa 40Mbps.
+ Băng thông đầu ra: 60Mbps.
+ Chuẩn nén hình ảnh: H.265/H.265+/H.264/H.264+.
+ Hỗ trợ 1 ổ cứng SATA với dung lượng tối đa 6TB.
+ Hỗ trợ 4 cổng POE, độc lập, chuẩn AT, AF, công suất 36W.
+ Vỏ sắt 1U mini
- HDMI Cable: Cáp HDMI, 2m, đen.
Đặc tính kỹ thuật
| Camera | |
| Camera Case Type | Bullet |
| Image Sensor | 1/2.8-inch Progressive Scan CMOS |
| Min. Illumination | 0.028 Lux |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Day &Night | IR cut filter |
| WDR | DWDR |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360° |
| Protection Level | IP67 |
| Material | Front cover: metal, back cover & bracket: plastic |
| Camera/Lens | |
| Focal Length | 2.8 mm |
| Aperture | F2.0 |
| Focus | Fixed |
| FOV | Horizontal FOV: 114.8°, vertical FOV: 62°, diagonal FOV: 135.5° |
| Lens Mount | M12 |
| Camera/IR | |
| IR Range | Up to 30 m |
| Camera/Compression Standard | |
| Video Compression | H.265+;H.265;H.264+;H.264;MJPEG |
| H.264 Type | Main Profile/High Profile/Baseline Profile |
| H.264+ | Main Profile |
| H.265 Type | Main Profile |
| H.265+ | Main Profile |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Camera/Image | |
| Max. Resolution | 2MP |
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) |
| Image Setting | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day/Night Switch | Auto/Scheduled/Day/Night |
| Camera/Network | |
| Alarm Trigger | Motion detection, video tampering alarm, illegal login |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark |
| Client | iVMS-4200, HiLookVision, iVMS-5200, iVMS-4500 |
| Camera/Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Camera/General | |
| Power Supply | 12 VDC ± 25%, Φ 5.5 mm coaxial plug power, or PoE (802.3af, class 3) |
| Consumption | 12VDC, 0.3A, Max: 3.5W, or PoE (802.3af, 36V to 57V), 0.2 A to 0.1A, Max: 4.5W |
| Working Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working Humidity | 95% or less (non-condensing) |
| Dimension (W × D × H) | Ø 70mm × 172.7mm |
| Weight | Approx. 270 g (0.6 lb) |
| NVR/Video And Audio | |
| IP Video Input | 4-ch |
| Incoming/Outgoing Bandwidth | 40 Mbps/60 Mbps |
| HDMI/VGA Output | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| NVR/Decoding | |
| Decoding Format | H.265+;H.265;H.264+;H.264 |
| Capability | 2-ch@1080p/1-ch@4MP |
| NVR/Network | |
| Network Interface | 1, RJ45 10/100M Ethernet interface |
| Network Protocol | IPv6, UPnP™, NTP, SADP, DHCP |
| Remote Connection | 16 |
| NVR/PoE | |
| Interface | 4-ch |
| Power | ≤ 36 W |
| Standard | IEEE 802.3 af/at |
| NVR/Auxiliary Interface | |
| SATA | 1 |
| Capacity | Up to 6 TB capacity for each disk |
| USB Interface | Rear panel: 2 × USB 2.0 |
| NVR/General | |
| Power Supply | 48 VDC |
| Consumption (Without HDD And PoE Off) | ≤ 10 W |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 265 × 225 × 48 mm |
| Weight (Without Hard Disk) | ≤ 1 kg (2.2 lb) |
| Kit | |
| Accessories | Power: 1 power cable Network cable: 4 × 18.3 m (60 ft) video and power cable HDMI cable: 1 HDMI cable |
| Certification | FCC, CE |
| Weight (With Package) | ≤ 6.5 kg (14.3 lb) |
- Bảo hành: 24 tháng.
