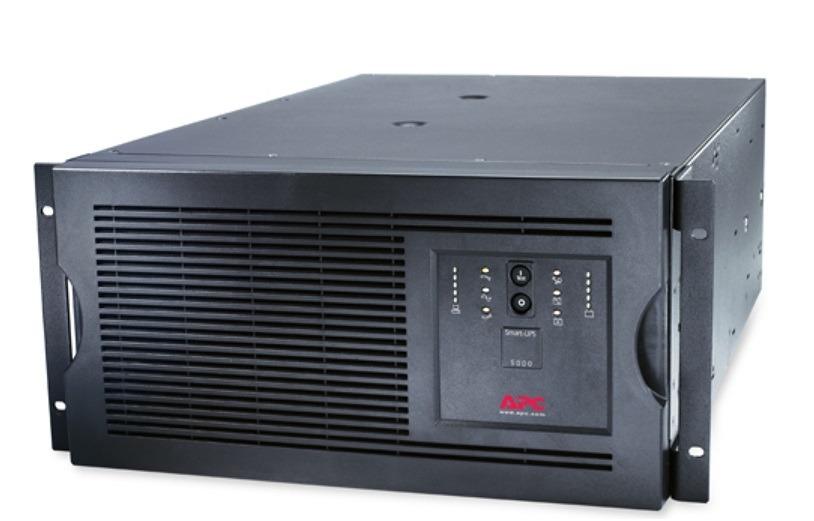

Bộ lưu điện UPS APC SUA5000RMI5U
- APC Smart-UPS 5000VA 230V Rackmount/Tower.
- Công suất đầu ra: 4.0kWatts/5.0kVA.
- Tần số ngõ ra: 47-53Hz for 50Hz nominal.
- Dạng sóng: Sine.
- Thời gian chuyển mạch: 2ms.
- Tần số ngõ vào: 50/60Hz +/- 3Hz (auto sensing).
- Dải điện áp đầu vào: 160-286V.
- Thời gian sạc: 3 giờ.
- Kích thước (HeightxWidthxDepth): 222x483x660 mm.
- Trọng lượng: 97.73 kg.
Đặc tính kỹ thuật
| Output | |
| Max Configurable Power (Watts) | 4.0kWatts / 5.0kVA |
| Output Voltage Note | Configurable for 220 : 230 or 240 nominal output voltage |
| Efficiency at Full Load | 96.00% |
| Output Voltage Distortion | Less than 5% at full load |
| Output Frequency (sync to mains) | 47 - 53 Hz for 50 Hz nominal |
| Other Output Voltages | 220, 240 |
| Topology | Line Interactive |
| Waveform type | Sine wave |
| Transfer Time | 2ms typical : 4ms maximum |
| Input | |
| Input frequency | 50/60 Hz +/- 3 Hz (auto sensing) |
| Input voltage range for main operations | 160 - 286V |
| Input voltage adjustable range for mains operation | 151 - 302V |
| Efficiency at Full Load | 96.00% |
| Batteries & Runtime | |
| Battery type | VRLA |
| Typical recharge time | 3hour(s) |
| Replacement Battery | RBC55 |
| Expected Battery Life (years) | 3 - 5 |
| RBC Quantity | 2 |
| Battery Volt-Amp-Hour Capacity | 1632 |
| Communications & Management | |
| Interface Port(s) | DB-9 RS-232, SmartSlot |
| Pre-Installed SmartSlot Cards | AP9630 |
| Control panel | LED status display with On Line : On Battery : Replace Battery and Overload indicators |
| Audible Alarm | Audible and visible alarms: configurable delays |
| Surge Protection and Filteri | |
| Surge energy rating | 480Joules |
| Filtering | Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: meets UL 1449 |
| Physical | |
| Dimension (Height x Width x Depth) | 222x483x660 mm |
| Net Weight | 97.73 kg |
| Color | Black |
| Master Carton Units | 1 |
| Units per Pallet | 4 |
| Environmental | |
| Operating Temperature | 0 - 40 °C |
| Operating Relative Humidity | 0 - 95 % |
| Operating Elevation | 0-3000meters |
| Storage Temperature | -15 - 45 °C |
| Storage Relative Humidity | 0 - 95 % |
| Storage Elevation | 0-15000meters |
| Audible noise at 1 meter from surface of unit | 53.0dBA |
| Online thermal dissipation | 430.0BTU/hr |
- Bảo hành: 3 năm cho thiết bị (electronics) và 2 năm cho pin (battery).
