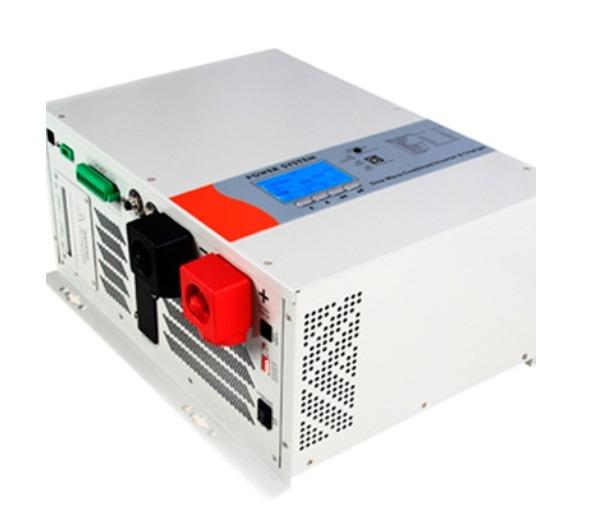

Bộ nguồn Home Inverter 1800W APOLLO KC3000
- Hỗ trợ Công nghệ: Line-interactive - SÓNG SIN CHUẨN.
- Điện áp vào: 220V ±10%.
- Điện áp ra: 220V±5%.
- Tần số nguồn vào: 50/60 ± 10% (Auto sensing).
- Tần số nguồn ra: 50/60Hz ± 1% (Auto sensing).
- Thời gian chuyển mạch: 3-10ms.
- Thời gian lưu điện: Tùy thuộc vào ắc quy ngoài.
- Ứng dụng: Các thiết bị gia đình như Quạt, đèn, tivi, máy tính, thiết bị an ninh, giám sát camera... và nhiều ứng dụng nguồn quan trọng khác…
Đặc tính kỹ thuật
| MODEL | KC3000 |
| Capacity | 3000 VA / 1800 W |
| DC INPUT | |
| Rated voltage | 48 V |
| DC input range (default) | 40 ~ 60V |
| AC INPUT | |
| AC input range (bypass mode) | 0 ~ 121 V / 132 V / 138 V / 144 Vac for 100 V / 110 V / 115 V / 120 Vac ± 10 Vac 0 ~ 242 V / 264 V / 276 V / 288 Vac for 200 V / 220 V / 230 V / 240 Vac ± 10 Vac |
| AC input range (mains mode) | 100 V: 70 ~ 130 Vac 110 V: 80 ~ 140 Vac 115 V: 85 ~ 145 Vac 120 V: 90 ~ 150 Vac 200 V: 145 ~ 260 Vac 220 V: 165 ~ 280 Vac 230 V: 175 ~ 290 Vac 240 V: 185 ~ 300 Vac |
| Frequency input range | 50 Hz / 60 Hz (auto-sense), 50 Hz / 60 Hz ± 5% ~ 15% |
| Generator connection | Available (generator input power is settable) |
| OUTPUT | |
| Inverter output range | 100 V / 110 V / 115 V / 120 Vac ± 5% (settable) 200 V / 220 V / 230 V / 240 Vac ± 5% (settable) |
| AC output range (bypass mode) | 0 ~ 121 V / 132 V / 138 V / 144 Vac for 100 V / 110 V / 115 V / 120 Vac ± 10 Vac 0 ~ 242 V / 264 V / 276 V / 288 Vac for 200 V / 220 V / 230 V / 240 Vac ± 10 Vac |
| AC output range (mains mode) | 100 V: 90 ~ 110 Vac 10 V: 99 ~ 121 Vac 115 V: 103 ~126 Vac 120 V: 108 ~132 Vac 200 V: 166 ~226 Vac 220 V: 188 ~245 Vac, 230 V: 199 ~ 254 Vac 240 V: 210 ~264 Vac |
| Output frequency | 50 / 60 Hz ± 0.3 Hz (settable) |
| Waveform | Pure sine wave |
| Inverter efficiency | Max. 85% |
| Energy saving mode | Settable (< 3% load), enter in 80 s |
| No-load shutdown | Settable (< 3% load), shut down in 80 s |
| Transfer time | ≤ 10 ms |
| THDV (resistive load) | ≤ 5% |
| Protections | Overload, short circuit (inverter), battery low voltage, battery overcharge, overtemperature |
| Overload time (mains mode) | 120 s for 110%, 60 s for 125%, 10 s for 150% (transfer to bypass mode) |
| Overload time (inverter mode) | 60 s for 110%, 10 s for 125%, 5 s for 150% (Shut down directly) |
| Mute | Automatic mute in 60 s or by manual |
| BATTERIES | |
| Battery capacity | 48 VDC |
| Charging current | Max. 20 A |
| Equalizing charge voltage | Single battery 14.1 Vdc (default), 13.6 ~ 15 Vdc adjustable |
| Floating charge voltage | Single battery 13.5 Vdc(default),13.2 ~ 14.6 Vdc adjustable |
| Low voltage alarm point | Single battery 10.8 Vdc (default), 9.6 ~ 13 Vdc adjustable |
| Low voltageshutdown point | Single battery 10.2 Vdc (default), 9.6 ~ 11.5 Vdc adjustable |
| COMMUNICATIONS | |
| USB+RJ45 (optional) | Supports Windows® 98 / 2000 / 2003 / XP / Vista / 2008 / 7 / 8 / 10 |
| SNMP (optional) | Power management from SNMP manager and web browser (standard with slot) |
| OTHERS | |
| Operating temperature | 5℃~ 40℃ |
| Operating humidity | Relative humidity ≤ 93% |
| Noise level | ≤ 50 dB (1m) |
| Dimensions (W×D×H) | 190 x 467 x 335.5 mm |
- Bảo hành: 12 tháng.
