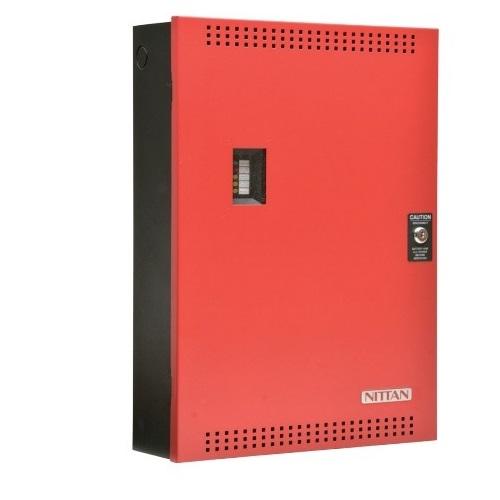

Bộ nguồn phụ 24VDC/6A NITTAN NFU-PS-10A
- Nittan’s NFU-PS-10A is an Auxiliary Power Supply/NAC Expander that works with listed SPERA series fire alarm control panels. Available in a 10Amp configuration, the NFU-PS-10A can extend the power capabilities of existing notification appliance circuits as well as provide power for other ancillary devices. In addition, the NFU-PS-10A has the ability to operate with any UL Listed conventional 24 VDC fire alarm control panel to provide Notification Appliance Circuit expansion.
- 10 Amp output.
- 120/ 240V operation.
- Works with listed SPERA Series Fire Alarm Control Panels.
- Easily configured using DIP switches.
- One isolated input from the host panel.
- Five Class B (Style Y) or Class A (Style Z) synchronized output circuits.
- DC regulated outputs.
- Configurable AC Power fail delay.
- Ground fault enable or disable.
- Option available on configuration to enable or disable the battery charger on activation.
- Outputs individually controllable.
- Separate Relay for Ground Fault and Common Trouble available on terminals.
- Horn/Strobe synchronization protocols.
- Two-wire horn/strobe Sync Mode allows audible notification appliances (horns) to be silenced while visual notification appliances (strobes) continue to operate.
- Audible signals may be configured for Steady, Temporal Code, California Code and March Time.
- Output circuits four and five can be configured to provide auxiliary power for four-wire detectors or door holders.
- Output fault notification to fire alarm control panel.
- Ability to sync outputs for multiple NFU-PS-10A units.
- 2.5 Amp max. current per output.
- 1.7 Amp auxiliary power output.
- Built-in charger for sealed lead acid or gel type batteries.
- Unit includes power supply, charger, red door, black backbox, transformer and battery leads.
- Compatible with any UL listed 24VDC conventional fire alarm control panel to provide Notification Appliance Circuit expansion.
Thông số kỹ thuật
| Model | NFU-PS-10A |
| Dimensions | 20-inch H x 14½-inch W x 4½-inch D |
| AC Line Voltage | 120V 60 Hz/ 240V 50 Hz, 2 Amps/ 1 Amp (primary) |
| NAC Circuits | 24 VDC regulated, Power Limited 10 A Total, 2.5 A maximum per circuit |
| Battery | 24 VDC, Gel-Cell/Sealed Lead-Acid |
| Charging Capability | Up to 40 AH batteries |
| Current Consumption | From NFU-PS-10A Power Supply Standby: 200 mA Alarm: 350 mA |
| Common Indicators | Power On Common Trouble Battery Charger/Trouble CPU Fail |
| Trouble LEDs | Auxiliary Output Trouble Synchronized Output Trouble Ground Fault Trouble |
| Other LEDs | Synchronized Input Indicators (2 LEDs) Synchronized Output Indicators (2 LEDs) Trouble LED Indicator Alarm Relay Indicator |
| Controls | Acknowledge Button Configuration DIP Switches |
- Bảo hành: 12 tháng.
