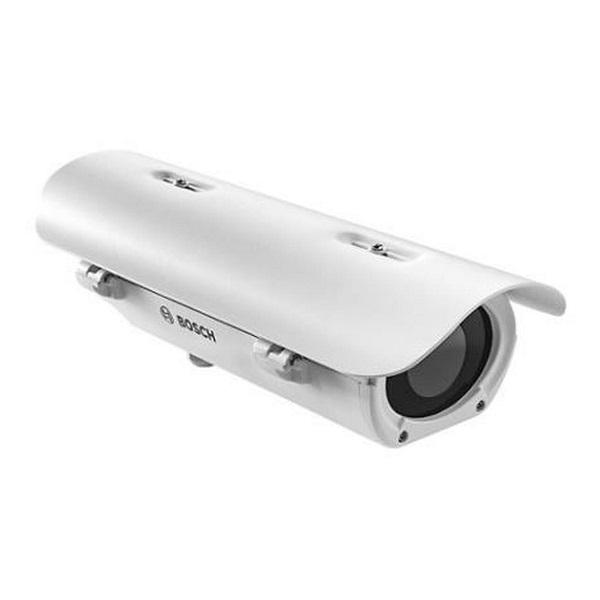

DINION IP thermal 8000 320x240 (QVGA), 7MM LENS, H.264, 60FPS, IVA 6.X ENABLED, SD CARD SLOT, EXPORT CONTROLLED
- Integrated Intelligent Video Analytics
- High access security for data protection
Key Specifications
| Input voltage | 24 VAC (SELV) ±10% 50/60 Hz |
| Power consumption | 34 W max. |
| Image sensor | Un-cooled vanadium oxide microbolometer |
| Picture elements | 320(H) x 240(V) or 640(H) x 480(V) |
| Pixel pitch | 17 μm |
| Thermal sensitivity | < 50 mK |
| QVGA | 320 x 240 at 60 fps |
| Adjustable picture settings | Contrast |
| Thermal color mapping | 12 selectable modes |
| QVGA | VGA |
| 7.5 mm | 41.8° x 30°, - |
| Video compression | H.264 (MP); M- JPEG |
| Streaming | Multiple configurable streams in H.264 and M-JPEG, configurable frame rate and bandwidth. Regions of Interest (ROI) |
| Camera processing latency | <55 ms |
| GOP structure | IP, IBP, IBBP |
| Analog output | Off, 4:3, 16:9 pillar box, 16:9 crop |
| Positioning | Coordinates / Mounting height |
| Analysis type | Intelligent Video Analytics |
| Configurations | Silent VCA / Profile1/2 / Scheduled / Event triggered |
| Alarm rules (combinable) | Any object Object in field Line crossing Enter / leave field Loitering Follow route Counting Occupancy Condition change Similarity search Flow / counter flow |
