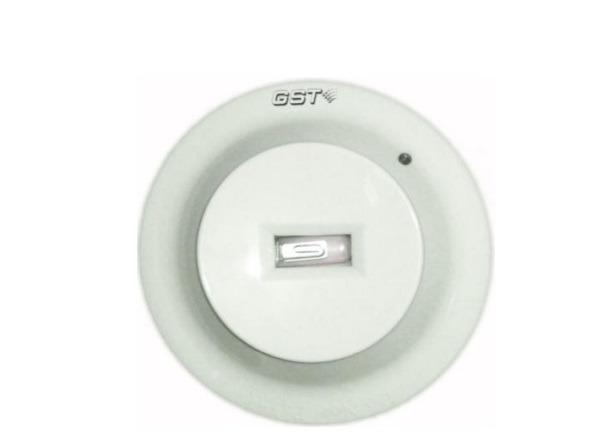

Đầu dò báo lửa tử ngoại GST C-9104
- C-9104 Conventional Ultraviolet Flame Detector detects fire by analyzing ultraviolet radiation of material flaming. It's applicable to places where open fire, fire with intense flame radiation and fire without smoldering stage take place easily, as well as places where quick response to a fire is required. Used together with other detectors, it can sense fire in time to minimize losses as much as possible.
- Using excellent UV sensor.
- High sensitivity, reliable performance, dust-proof, damp-proof and corrosion-proof.
Thông số kỹ thuật
| Model | C-9104 |
| Operating Voltage | 24VDC (16VDC~28VDC) |
| Standby Current | ≤1.6mA |
| Alarm Current | ≤38mA |
| Sensitivity | Level I |
| Indicator | Red. Flash in standby condition. Illuminates steadily in alarm. |
| Detection Angle | ≤80° |
| Operating Temperature | -20℃～+50℃ |
| Relative Humidity | ≤95%, non condensing |
| Dimension | Diameter: 103mm Height: 53.5mm (with base) Diameter: 100mm Height: 41mm (without base) |
| Material and Color of Enclosure | ABS, white (RAL 9016) |
| Weight | About 112g |
| Mounting Hole Distance | 45mm～75mm |
- Bảo hành: 12 tháng.
