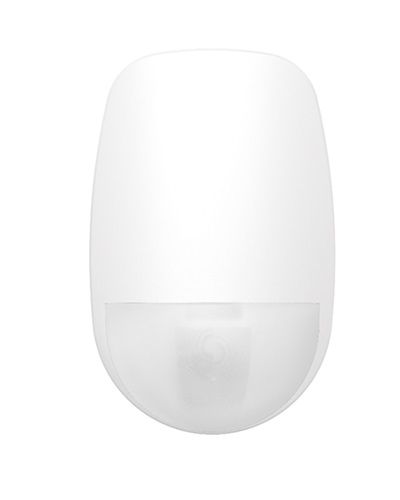

Cảm biến hồng ngoại không dây HIKVISION DS-PDC15-EG2-WB (Gen2)
- Khoảng cách kết nối đến trung tâm báo động: 1.200 mét (trong không gian trống).
- Khoảng cách nhận diện chuyển động: 15 mét.
- Có báo cường độ tín hiệu.
- Có thể cấu hình từ xa qua APP.
- Chiều cao lắp đặt: 2.4m đến 3.6m.
- Loại pin: 1 x CR123A (kèm sẵn trong thiết bị, thay thế dễ dàng).
- Tuổi thọ pin: khoảng 5 năm.
Features
- Long range with narrow angle detection
- Fully remote configurable through App
- Multiple enrollment method and easy installation design
- Easy replaceable battery with PCB protected
- Frequency hopping against jamming for reliable transmission
Đặc tính kỹ thuật
| Model | DS-PDC15-EG2-WB |
| Detection Performance | |
| Detection Method | Passive Infrared |
| Detection Range | 15m |
| Detection Angle | 6.3° |
| Detection Zones | 18 |
| Detectable Speed | 0.3～2m/s |
| Pet Immunity | None |
| White Light Filter Compensation | 6500lux |
| Creep Zone Protection | Support |
| Feature | |
| Digital Processing | Support |
| Sealed Optics | Support |
| Tamper Protection | Front; Rear |
| Environment Temperature Indicator | Support |
| Signal Strength Indicator | Support |
| Interface | |
| Power Switch | Power Up Enrolling |
| LED Indicator | Blue(Alarm) |
| Transmission | |
| Transmission Technology | Tri-X Wireless |
| Transmission Method | Two-Way RF Wireless |
| Transmission Frequency | 433MHz |
| Transmission Security | AES-128 Encryption |
| Transmission Range(Free Space) | 1.2Km |
| Frequency Hopping | Support |
| Enrolling Method | Power up;Remote ID;QR Code |
| Electrical Characteristics | |
| Standard Battery Life | 5 years in work status (being triggered 20 times per day) |
| Power Supply | Battery Powered |
| Battery Type | CR123A × 1 |
| Typical Voltage | 3V |
| General | |
| Operation Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Operation Humidity | 10% to 90% |
| Mounting Height | 2.4 to 3.6m |
| Mounting Method | Wall |
| Application Scenario | Indoor |
| Bracket | Optional Wall & Ceiling Accessory |
| Dimension | 65.5mm × 103mm × 48.5mm |
| Weight | 128g |
- Bảo hành: 24 tháng.
