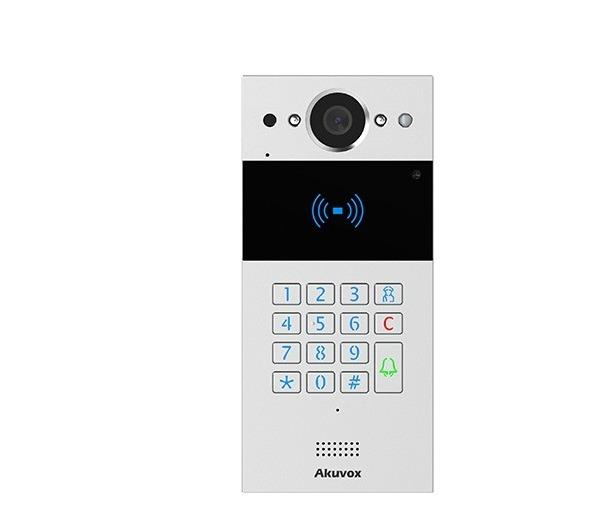

Camera chuông cửa IP AKUVOX R20K (Treo tường)
- Camera 3.0 Megapixel tự động cân bằng sáng, góc 110°, hỗ trợ hồng ngoại.
- Giao tiếp video hai chiều, khử tiếng vọng.
- Hỗ trợ sẵn bàn phím bấm số.
- Hỗ trợ đầu đọc thẻ.
- Hỗ trợ chuẩn giao tiếp NFC.
- Hỗ trợ kết nối được nhiều loại thẻ.
- Tương thích với tất cả tổng đài IP chuẩn SIP.
- Hỗ trợ kết nối tới 8 màn hình khác nhau.
- Điều khiển được 2 cửa khác nhau.
- Hỗ trợ chuẩn PoE, hoặc nguồn 12V.
- Vật liệu: Hợp kim nhôm.
- Tiêu chuẩn chống bụi và nước: IP65 (thích hợp lắp đặt trong nhà và ngoài trời).
- Bao gồm giá treo tường.
Đặc tính kỹ thuật
| Physical & Power | Front panel: Aluminum alloy |
| Camera: 3Megapixels, automatic lighting | |
| Numeric keypad with extra buttons | |
| Light sensor: Support | |
| Infrared sensor: Support | |
| Wiegand port: Support | |
| RS485 port: Support | |
| RF card reader: 13. 56MHz & 125kHz | |
| Relays out: 2 | |
| Inputs: 2 | |
| Microphone: -40dB | |
| Speaker: 42Ω/3W | |
| Ethernet port: RJ45, 10/100Mbps adaptive | |
| 802.3af Power- over - Ethernet | |
| 12V DC connector (if not using PoE) | |
| Water-proof & Dust- proof: IP65 | |
| Installation: Wall- mounted | |
| Wall-mounted DIM: 185x85x24mm | |
| Working Humidity: 10 ~ 90% | |
| Working Temperature: -30°C ~ +65°C | |
| Storage Temperature: - 40°C~ + 70°C | |
| Audio | SIP v1 (RFC2543), SIP v2 (RFC3261) |
| Narrowband audio codec: G.711a, G.711μ, G.729 | |
| Broadband audio codec: G.722 | |
| DTMF: In- band, out-of-band DTMF (RFC2833), SIP Info | |
| Echo Cancellation | |
| Voice Activation Detection | |
| Comfort Noise Generator | |
| Video | Sensor: 1/3-inch, CMOS |
| Pixels: CIF, QCIF, VGA, 4CIF, 720p | |
| Video codec: H.265&H.264 | |
| Video resolution: up to 1080p | |
| Max. image transfer rate: 720p -30fps | |
| Viewing angle: 110°(H)/ 58°(V) | |
| High intensity IR LEDs for picture lighting during dark hours with internal light sensor | |
| Compatible to 3rd- Party video components, e.g. NVRs | |
| Networking & Protocol | Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP. ARP |
| Deployment & Maintenance | Auto- Provisioning Web management portal Web-based packet dump Configuration backup/restore Entry log export Access table export/import Firmware upgrade System logs (include door access logs) |
| Application | Office doorphone with on-site or hosted P-PBX Remote site entry over Internet Apartment/flat intercom with door access control |
- Bảo hành: 24 tháng.
