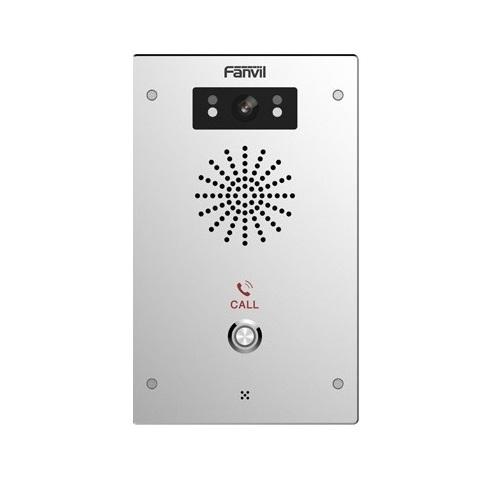

Camera chuông cửa IP FANVIL i16V
- Hỗ trợ camera có cảm biến hình ảnh: 1/2.7-inch color CMOS.
- Độ phân giải camera: 2.0 Megapixels
- Hỗ trợ 1 nút ấn.
- 2 tài khoản SIP.
- Âm thanh HD.
- Hỗ trợ chuẩn kết nối ONVIF.
- Tiêu chuẩn chống nước và chống bụi: IP65.
- Tiêu chuẩn chống va đập: IK10.
- Kích thước: 195 x 120 x 34 mm.
- Trọng lượng: 1015g.
Đặc tính kỹ thuật
| Model | FANVIL i16V |
| Generic | - 2 SIP Lines - Full-duplex handsfree(HF) - Intelligent DSS Keys (Speed Dial/intercom etc) - Auto answer - Intercom function - Industrial Standard Certifications: IP65&IK10, CE/FCC |
| Intercom Function | - Dynamic multicast function - Support ONVIF - Support customized DSS Keys - Network Time Synchronization - Action URL/ Active URI |
| Audio | - Wideband ADC/DAC 16KHz Sampling - Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB - Wideband Codec: G.722 - Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length - Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) - Packet Loss Concealment (PLC) - Dynamic Adaptive litter Buffer up to 300ms - DTMF: In-band, Out of Band DTMF (RFC2833) / SIP INFO |
| Video | - Sensor: 1/2.7-inch color CMOS - 2 Megapixels - Video codec: H.264 - Resolution: Main stream 1280×720@25fps Substream 704×576(D1)@25fps - Viewing angle: 112° (H), 84° (V) - Minimum illumination: 0.1Lux, support for infrared illumination |
| Networking | - 10/100Mbps - IP Configuration: Static / DHCP / PPPoE - Network access authority authentication: 802.1x - VPN: L2TP / OpenVPN - VLAN - QoS |
| Protocols | - SIP2.0 over UDP/TCP/TLS - RTP/RTCP/SRTP - STUN - DHCP - LLDP - PPPoE - 802.1x - L2TP - OpenVPN - SNTP - FTP/TFTP - HTTP/HTTPS - TR-069 |
| Deployment & Maintenance | - Auto-Provisioning via FTP/ TFTP/ HTTP/ HTTPS/ DHCP OPT66/ SIP PnP/ TR-069 - Web Management Portal - Web-based Packet Dump - Configuration Import and Export - Firmware Upgrade - Syslog |
| Physical Specifications | - 1 DSS button (speed dial button) - 1 RJ45 port - 1 audio output interface - 1 recording output interface - 2 short circuit input interface - 2 short circuit output interface - G-sensor for tamper alarm - Power: DC12V/1A or PoE - Housing material: aluminum alloy shell - Protection level:IP65 and IK10 - Installation: Wall-mounting - Working temperature: -40 ~ 70°C - Storage temperature: -40 ~ 70°C - Relative humidity: 10% - 90% - Equipment size: 195x120x34mm - Packing size: 260x165x62mm - Equipment weight: 1015g |
- Bảo hành: 24 tháng.
