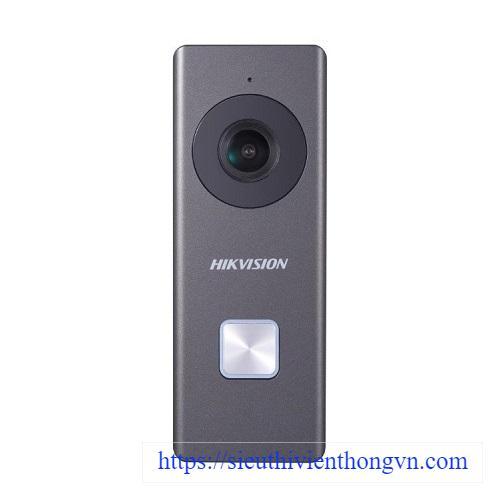

Camera chuông cửa IP không dây HIKVISION DS-KB6403-WIP
- Cảm biến hình ảnh: CMOS.
- Độ phân giải: 2MP HD.
- Khả năng quét ngang 160°.
- 1 nút gọi, 1 nút đặt lại, 1 Card mạng không dây.
- Hỗ trợ 2.4 GHz.
- Hỗ trợ hồng ngoại khoảng cách: 5 mét.
- Nguồn vào: 12V DC.
Đặc tính kỹ thuật
Model | DS-KB6403-WIP |
System Parameters | |
Operation System | Embedded Linux Operation System |
Processor | High-Performance Embedded SOC Processor |
Camera Parameters | |
Image Sensor | CMOS 2MP HD Colorful Camera |
Light sensitivity | Low Illumination |
Lens | f1.96 mm, F 2.2 |
Field of view | 180° (Horizontal), 96°(Vertical) |
Audio Parameters | |
Audio Input | Built-in Omnidirectional Microphone |
Audio Output | Built-in Loudspeaker |
Audio streaming | Two-Way, Full Duplex |
Audio Compression Standard | G.711 U |
Audio Compression Rate | 64 Kbps |
Audio Quality | Noise Suppression and Echo Cancellation |
Video Parameters | |
Video streaming | Dual Stream |
Main Stream: 1080P, Sub-Stream: VGA | |
Video Compression Standard | H.264 |
Anti-flicker frequency | 50 Hz, 60 Hz |
Wide dynamic range | WDR |
Network Parameters | |
Network Protocol | TCP/IP, RTSP |
Interface number | 1 Wireless Interface (Wireless Network Card), Supporting 2.4 GHz |
Light Supplement | |
Light Supplement Mode | IR Supplement |
Wavelength | 940 nm |
Event actions | |
Event | Motion Detection |
Device Interfaces | |
TF Card (micro SD card) | Max. 128 G |
Button | 1 Call Button, 1 Reset Button |
General | |
Power Supply | 12 VDC |
Power Consumption | Max. 0.6 A |
IP Protection Level | IP54 |
Dimensions (L × W × H) | 122.4 x 45.9 x 28.1 mm |
- Bảo hành: 24 tháng.
