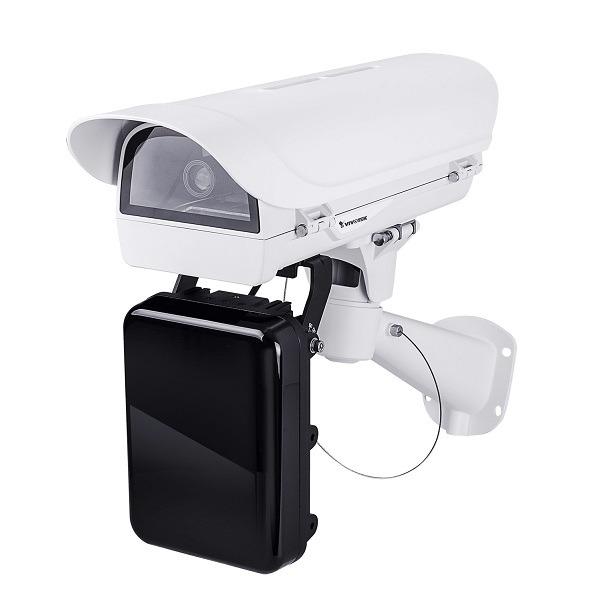

Camera chuyên dụng chụp biển số xe Vivotek IP9172-LPC
- Có thể chụp tốc độ xe lên đến 250 km/h.
- Cảm biến hình ảnh: 1/1.8 inch Global Shutter CMOS.
- Khoảng cách chụp lên đến 25 mét.
- Ống kính: f = 12 ~ 40 mm.
- Hỗ trợ 2 làn đường (mỗi làn từ 3.5~4 mét).
- Hỗ trợ chức năng phơi sáng mở rộng Automatic Exposure Bracketing (AEB).
- Tiêu chuẩn chống bụi nước: IP68.
- Tiêu chuẩn chống va đập: IK10.
- Nhiệt độ hoạt động: -40°C ~ 60°C.
Đặc tính kỹ thuật
| Camera Features | |
| Image Sensor | 1/1.8″ Global Shutter CMOS |
| Maximum Resolution | 2048×1536 (3MP) |
| Lens Type | Vari-focal, Remote focus |
| Focal Length | f = 12 ~ 40 mm |
| Aperture | F1.8 ~ F2.3 |
| Auto-iris | P-iris |
| Field of View | 12.3° ~ 35.8 ° (Horizontal) 9.8° ~ 26.3° (Vertical) 15.8° ~ 47.6° (Diagonal) |
| LPR Technology | LPC Scene mode, Spectrum mode*, Auto Exposure Bracketing (AEB) |
| Day/Night | Removable IR-cut filter for day & night function (Headlight filter design for Anti-Glare) |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in) |
| On-board Storage | Slot type: MicroSD/SDHC/SDXC card slot (Max. SD card capacity: 128GB) Seamless Recording |
| Video | |
| Maximum Frame Rate | AEB off: 55 fps @ 2048 x 1536 60 fps @ 1920 x 1080 AEB On: 30f ps @ 1920 x 1080 (Stream 1, Stream 2) 60 fps @ 1920 x 1080 (Stream3) |
| S/N Ratio | 56 dB |
| Dynamic Range | 50 dB |
| Audio | |
| Audio Capability | Two-way Audio (full duplex) |
| Compression | G.711, G.726 |
| Interface | External microphone input External line output |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45) |
| General | |
| Max. Distance | 25 meters |
| Beam Angle | 20° ~ 40° remote adjustable |
| Input Power | 24VDC ±10% |
| Power Consumption | Max. 24 W Pulse mode: Power output type 288 W |
| Weight | 2.1 kg |
| Housing | Weather-proof IP68-rated housing Vandal-proof IK10-rated housing |
| Operating Temperature | Continous Mode: -40 °C ~ 50°C (-40 °F ~ 122 °F) Pulse Mode: -40 °C ~ 60 °C (-40°F ~ 140°F) |
| Color | Black |
| Wavelength | 850nm |
| Dimensions | 220 x 160 x 73 mm |
- Bảo hành: 36 tháng.
