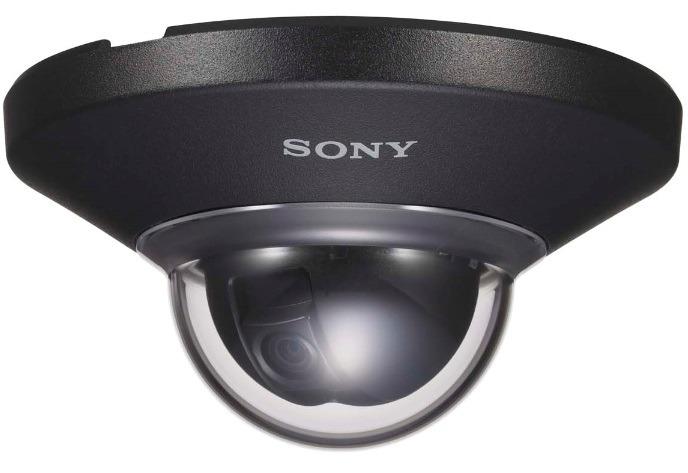

Camera Dome IP 3.0 Megapixels SONY SNC-DH210T
- Cảm biến hình ảnh: 1/2.8 Exmor CMOS sensor.
- Chuẩn nén hình ảnh: H.264, MPEG-4, JPEG.
- Độ phân giải: Full HD 3.0 Megapixels cho hình ảnh cực kỳ sắc nét.
- Độ nhạy sáng: 2.0 Lux.
- Ống kính: 3.3 mm.
- Công nghệ phân tích hình ảnh thông minh 'DEPA'.
- Zoom: Fixed
- Camera Day/ Night: Electrical (Not true D/N).
- Tiêu chuẩn chống va đập, phá hoại: IK10.
- Góc nhìn ngang: 88°.
- Chức năng cấp nguồn qua mạng PoE.
- Kích thước: 106 x 50.5 mm.
- Trọng lượng camera ip : 150 g.
- Network 1080p resolution HD 3.0 megapixel Vandal Resistant Minidome camera, PoE, white base, 88° horizontal field of view.
- HD 1920 x 1080p Picture Quality at 15fps
- 2048 x 1536 max resolution capabilities
- Three Codecs - H.264, MPEG4, JPEG
- Dual-streaming Capability - any combination
- 1/2.8 type 'Exmor' CMOS sensor
- 3.0 megapixels designed for surveillance applications
- Electrical Day/Night Function
- Intelligent Motion Detection reduces false positives
- Tampering Alarm detects attempts like spray painting
- Stream Squared function optimizes bandwidth and storage capacity
- Vandal Resistant - IK-10 rated
- Power-over-Ethernet
- ONVIF conformance
Camera Specifications | Detail: |
IP/Analog | IP |
Image Device | 1/2.8 type progressive scan Exmor CMOS sensor |
Effective Pixels | 3 Megapixel |
(2096×1561) | |
Minimum Illumination | '2.0 lx (AGC [38 dB] / 50IRE [IP])' |
Lens Type | Fixed |
Focal Length | f=3.3 |
F-Number | F2.8 |
Compression Format | H.264, MPEG-4, JPEG |
Day Night | Yes (Electrical D/N) |
Zoom Ratio | Fixed focal lens |
Minimum Object Distance | 500 mm |
White Balance Mode | Auto (ATW, ATW-PRO) , Preset, One-push WB, Manual |
Horizontal Viewing Angle | 88 degrees |
Electronic Shutter | 1s to 1/10000 s |
Exposure Control | Auto, EV Compensation, Auto Slow Shutter |
Gain | Auto |
Image Specifications | Detail: |
Compression Format | H.264, MPEG4, JPEG |
Frame Rate | JPEG:12fps(2048×1536)/15fps(1920×1080)/30fps(1280×720) |
MPEG-4:15fps(1920×1080)/30fps(1280×720) | |
H.264:15fps(1920×1080)/30fps(1280×720) | |
Analog Video Output Specifications | Detail: |
Signal System | NTSC / PAL |
General Specifications | Detail: |
Weight | 5.3 oz (150g) |
Dimensions (W x H x D) | ø 4 1/4 x 2 1/8 inches (ø 106 x 50.5 mm) |
Power Requirements | PoE |
Power Consumption | 2.4W |
Operating Temperature | 32°F to 122°F (0°C to 50°C) |
Storage Temperature | -4°F to +140°F (-20°C to +60°C) |
Compression | H.264, MPEG4, JPEG |
FPS | variable up to 30 |
Resolution | 3.0 megapixel/1080p |
Network Specifications | Detail: |
Protocols | IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, |
SNMP (MIB-2) | |
Number of Clients | 5 |
Authentication | IEEE802.1X |
System Requirements Specifications | Detail: |
Operating System | Windows XP™, Windows Vista (32bit), Windows 7 (32bit) |
Processor | Intel Core2 Duo 2 GHz or higher |
Memory | 1 GB or more |
Web Browser | Microsoft Internet Explorer® Ver. 6.0, 7.0, or 8.0 |
- Hàng chính hãng SONY.
- Bảo hành: 12 tháng.
