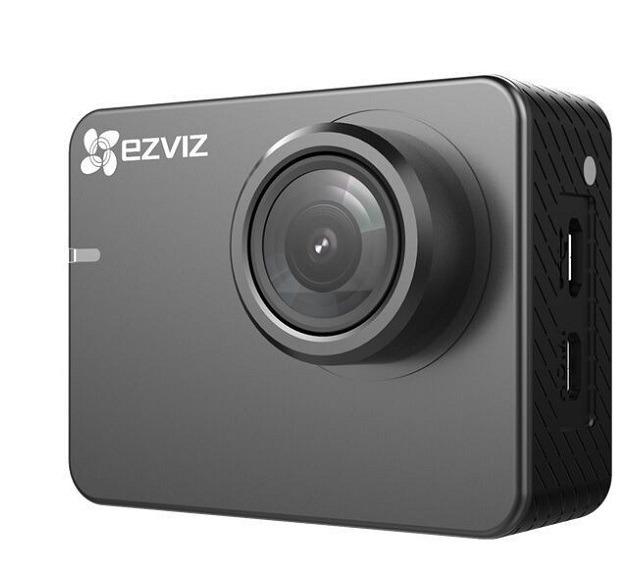

Camera hành trình 4K S3 Starter Kit EZVIZ CS-SP206-C0-68WFBS
- Độ phân giải của Camera: 4K/24fps, 1080P/50fps, 720P/120fps.
- Màn hình cảm ứng IPS LCD.
- Góc quan sát rộng 150° với thuật toán hiệu chỉnh cong ảnh.
- Kích thước ảnh: 8 MP.
- Tương thích với tín hiệu ngõ ra HDMI.
- Hỗ trợ chụp ảnh liên tục 15 hình/s.
- Hỗ trợ thẻ nhớ microSD với dung lượng lên đến 256GB.
- Tự động điều chỉnh tốc độ khung hình để đảm bảo ánh sáng.
- Hỗ trợ Micro và loa ngoài.
- Hỗ trợ kết nối ứng dụng EZVIZ mobile app qua Bluetooth 4.0, Wifi.
- Hỗ trợ tính năng HDR (High Dynamic Range imaging).
- Màu sắc: Xám.
Đặc tính kỹ thuật
| Model | CS-SP206-C0-68WFBS |
| Video | |
| Video Format | Resolution: 4k, NTSC (fps):24, PAL (fps): 24; Resolution: 2.7k, NTSC (fps):30, PAL (fps): 25; Resolution: 1080p, NTSC (fps):30/60, PAL (fps): 25/50; Resolution: 720p, NTSC (fps):30/60/120, PAL (fps): 25/50/120; H.264 BP/MP/HP Level 5.1 With MP4 Muxer File Format |
| Record Mode | Video |
| Low Light | Auto Adjust Frame Rate for enough exposure time purpose |
| Distortion Correct | Better X/Y Correct, 720p-1080p |
| HiLight Tag | High Light Important Time, used for Post processing |
| Split Mode | Set the length of video clip, 3min, 5min, MAX |
| Protune | White Balance, ISO, Sharpness, Ev Comp, Color Pattern |
| Slow Motion | Record 120fps and output slow motion video at 30fps |
| Loop Mode | To set up the storage mode according to the time interval set |
| Single Photo | |
| Photo Size | 8MP Wide |
| Night | 2s; 5s; 10s; 15s; 20s |
| Distortion Correct | Better X/Y Correct |
| Meter Mode | Center, Average, Spot |
| Protune | White Balance, ISO, Sharpness, Ev Comp, Color Pattern |
| Burst | |
| Image Size | 8MP Wide |
| Burst Rate | 15 pictures per second; 10 pictures per second; 5 pictures per second (default); 3 pictures per second |
| Distortion Correct | Better X/Y Correct |
| Meter Mode | Center, Average, Spot |
| Protune | White Balance, ISO, Sharpness, Ev Comp, Color Pattern |
| Time-lapse | |
| Shutter Mode | Time-lapse Photo, Timelapse Video |
| Photo Size | 8MP Wide |
| Video Resolution | 4K, 2.7K, 1080P, 720P |
| Shutter Interval | Photo: 1s, 3s, 5s, 10s, 30s, 60s, 120s, 300s; Video: 0.5s, 1s, 1.5s, 2s, 2.5s, 3s, 5s ; |
| Meter Mode | Center, Average, Spot |
| Night | 2s; 5s; 10s; 15s; 20s |
| Distortion Correct | Better X/Y Correct |
| Protune | White Balance, ISO, Sharpness, Ev Comp, Color Pattern |
| Setup | |
| View | Up, Down, AUTO |
| Default Mode | Video, Single, Burst, Timelapse |
| Vout Mode | Switching HDMI HD output and AV analog output |
| LED | Set it on or off |
| OSD | Turn on screen display on or off |
| Quickly Capture | Camera will Fastest speed boot and start shutter |
| Auto Off | Set Auto Power Off Time |
| Date And Time | Set Date And Time |
| Mic Gain | Set The Gain of Mic |
| Speaker Gain | Set The Gain of Speaker |
| Camera Reset | Reset Camera to default Settings |
| Wireless | |
| BLE 4.0 | Embedded bluetooth4.0 |
| Wi-Fi | 802.11b/g/n, Mobile App Support |
| App&Remote | Select connect Mode with Mobile App Or Wi-Fi Remoter |
| SSID | Support SSID Modify with Mobile App |
| KEY | Support KEY Modify with Mobile App |
| RESET | Reset SSID and KEY to system default |
| Display | |
| HDMI | Playback/Record UI |
| AV | AV output Use USB Interface |
| Embedded LCD | 320x240 (2 inch) LCD Touch Panel with IPS |
| General | |
| Platform | NT96160 |
| Memory | DDR3, SPI Flash |
| Lens | 150° Ultra-wide angle of view with less distortion |
| Sensor | HDR Support |
| Battery Type | Embedded |
| Battery Life | 2 hours on 4K/24fps mode (Varies with different video mode) |
| Audio | 48kHz (sampling); Advanced AGC (automatic gain control); Built-in single microphone; Single track |
| Interface | Micro USB2.0; Micro HDMI; MicroSD |
| Storage | |
| Standard | Class 10 or up to UHS-1 level Micro SD storage card |
| Capacity (Auto-Negotiation SDIO Clk From 24MHZ to 120MHZ) | 8GB; 16GB; 32GB; 64GB; 128GB; 256GB |
| Recording Time | Varies with different resolution and frame rate |
| Photo & Video Preview & Playback Setup | |
| App for Mobile Device | For iOS and Android system |
| Function | Live view, playback, recording, configuration, video file editing, and one-touch share to social media are supported. |
| Playback | Decode Photo and Video Files in SD Card and Display it via LCD or HDTV |
- Bảo hành: 12 tháng.
