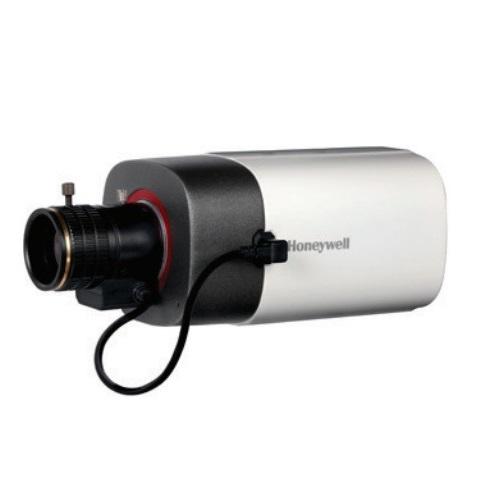

Camera IP 12.0 Megapixel HONEYWELL HCD8G
- Cảm biến hình ảnh: 1/1.7-inch progressive CMOS.
- Độ phân giải camera ip: 12.0 Megapixel.
- Ống kính: Lens rời.
- Tốc độ khung hình: 30 fps.
- Độ nhạy sáng tối thiểu: 0.02 lux colour @ F1.53, 0.01 lux B/W @ F1.5.
- Thẻ nhớ: Up to 128 GB microSDHC card, Class 10 (not included).
- Chuẩn nén hình ảnh: Up to 128GB microSDHC card, Class 10 (not included).
- Hỗ trợ chức năng cấp nguồn qua mạng PoE.
- Nguồn điện: 12VDC/ 24VAC.
Đặc tính kỹ thuật
| Model | HCD8G |
| OPERATIONAL | |
| Video Standard | NTSC/PAL |
| Scanning System | Progressive scan |
| Image Sensor | 1/1.7-inch 12 MP progressive CMOS |
| Number Of Pixels (H×V) | 4000×3000 |
| Minimum Illumination | 0.02 lux colour @ F1.53, 0.01 lux B/W @ F1.5 |
| S/N Ratio | 50 dB |
| Electronic Shutter Speed | Auto, Manual, 1/3(4)–1/100 000 s |
| Day/Night | Auto(ICR)/Colour/BW |
| Backlight Compensation | BLC/HLC/DWDR/SSA |
| Wide Dynamic Range | Digital WDR (DWDR) |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Customize Region |
| Gain Control | Auto/Manual |
| Noise Reduction | 3DNR |
| Privacy Masking | Up to 4 configurable areas |
| Corridor Mode | Yes |
| Electronic Image Stabilization | Off/On |
| Defog | Auto/Manual/Off |
| Auto Back Focus | Yes |
| Lens | Ordered separately, support for DC-iris lens |
| Audio/Two-Way | Line In/Out, 1 built-in mic |
| Alarm Input/Output | 2/1 |
| Ethernet | RJ-45 (10/100/1000Base-T) |
| Analog Output | BNC connector |
| IP SPECIFICATIONS | |
| Video Compression | H.265/H.264+/H.264/MJPEG Bit rate control (CBR and VBR) |
| Resolution | - 16:9: 8 MP (3840×2160)/ 3 MP (2304×1296)/ 1080p (1920×1080)/ 720p (1280×720) - 4:3: 12 MP (4000×3000)/ 5 MP (2560×1920)/ 3 MP (2048×1536)/ 1.3 MP (1280×960)/ VGA (640×480) - Other: 8 MP (4096×2160)/ 6 MP (3072×2048)/ SXGA (1280×1024)/ D1 (704×576/704×480)/ CIF (352×288/352×240) |
| Frame Rate | - Main Stream: 12 MP (4000×3000) 1–20 fps/ 8 MP (4096×2160) or lower resolution at 1–25/30 fps - Sub Stream: D1/VGA/CIF up to 25/30 fps - Triple Stream: 1080p/720p/D1/VGA up to 25/30 fps |
| Audio Compression | G.711a/G.711Mu/AAC/G.726 |
| Audio Stream | Full duplex, simplex |
| SD Card | Up to 128 GB microSDHC card, Class 10 (not included) |
| SD Card Function | - Event trigger recording - Continuous and scheduled recording - Automatic recording when network fails |
| Protocols | IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, SSL, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, Bonjour, DNS, DDNS, IEEE 802.1X, QoS, NTP, IP Filter, Multicast, ONVIF |
| Compatibility | ONVIF Profile S/G |
| Max. User Access | 20 users |
| Supported Web Browsers | Internet Explorer (11.0+), Firefox, Chrome |
| Supported OS | Windows 7 32-bit/64-bit, Windows 10 |
| Security | User account and password protection, HTTPS, IP Filter, IEEE 802.1x, digest authentication, user access log, TLS1.2, AES-256, SSH/Telnet closed, FTP disabled, PCI-DSS, built-in crypto chipset, UL2900-1, UL Cyber Assurance Program (UL CAP) certification |
| Languages Supported | English, Arabic, Czech, Dutch, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Turkish |
| ELECTRICAL | |
| Power Supply | PoE (802.3af) Class 0, 12 V DC / 24 V AC |
| AC Frequency | 50/60 Hz |
| Power Consumption | 8 W max. (ABF and ICR on) |
| MECHANICAL | |
| Dimensions | 125.0 × 69.0 × 75.8 mm (4.92 × 2.72 × 2.98 in.) |
| Product Weight | 1.21 lb (0.55 kg) |
| Package Weight | 1.87 lb (0.85 kg) |
| Construction | Die-cast aluminum housing with powder coat |
| Construction Colour | RAL9003 (White) and RAL7022 (Gray) |
| ENVIRONMENTAL | |
| Temperature | –30°C to 60°C (–22°F to 140°F) |
| Relative Humidity | Less than 95%, non-condensing |
| REGULATORY | |
| Emissions | EN 55032, FCC Part 15B, AS/NZS CISPR 22:2009+A1 (2010) |
| Immunity | EN 50130-4 |
| Safety | EN 60950-1, UL Listed to UL/CSA 60950-1 |
| RoHS | EN 50581 |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
