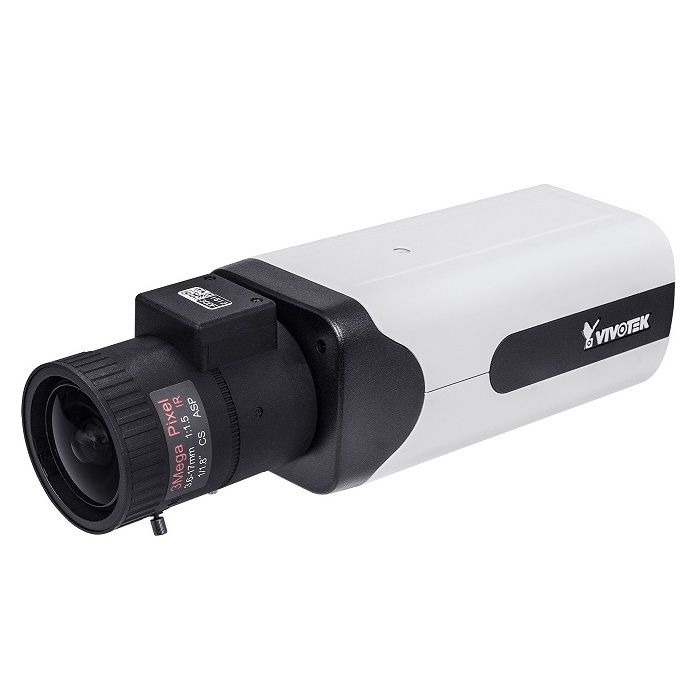

Camera IP 2.0 Megapixel Vivotek IP9165-HP (no lens)
- Cảm biến hình ảnh: 1/2 inch Progressive CMOS.
- Độ phân giải: 2.0 Megapixel.
- Chuẩn nén hình ảnh: H.265/H.264/MJPEG.
- Công nghệ chống ngược sáng WDR Pro (140dB).
- Chức năng giảm nhiễu 3D-DNR.
- Chức năng quan sát ngày đêm.
- Chức năng ổn định hình ảnh kỹ thuật số DIS.
Đặc tính kỹ thuật
| Camera Features | |
| Image Sensor | 1/2 inch Progressive CMOS |
| Maximum Resolution | 1920×1080 |
| Lens Type | Vari-focal, Remote Back Focus |
| Iris type | P-iris (DC-iris reserved) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro II |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| Minimum Illumination | 0.01 Lux @ F1.5 (Color) 0.005 Lux @ F1.5 (B/W) |
| Pan/tilt/zoom Functionalities | ePTZ:48x digital zoom (4x on IE plug-in, 12x built in) |
| On-board Storage | Slot type: MicroSD/SDHC/SDXC card slot (Max. SD card capacity:128GB) Seamless Recording |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 60 fps @ 1920×1080 |
| Maximum Streams | 4 simultaneous streams |
| S/N Ratio | 66.2 dB |
| Dynamic Range | 140 dB |
| Video Streaming | Adjustable resolution, quality and constant, bit rate control; Smart Stream III |
| Image Settings | Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, AE speed, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, DIS, video rotation, lens profile |
| Audio | |
| Audio Capability | Two-way audio |
| Compression | G.711, G.726 |
| Interface | External microphone input External line output |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS |
| Interface | 10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45) |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, advanced motion detection, MicroSD card life expectancy |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card File upload via HTTP, SMTP, FTP, NAS server and MicroSD card |
| General | |
| Connectors | RJ-45 cable connector for Network/PoE connection *1 Audio input *1 Audio output *1 DC 12V/AC 24V power in *1 Digital input *2 Digital output *2 RS485 *1 BNC *1 |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 0 DC 12V AC 24V |
| Power Consumption | DC 12V: Max. 9 W AC 24V: Max. 18 W PoE: Max. 9.06 W |
| Dimensions | 151 x 70 x 61 mm (wo/ lens) |
| Weight | 680g (wo/ lens) |
- Bảo hành: 36 tháng.
