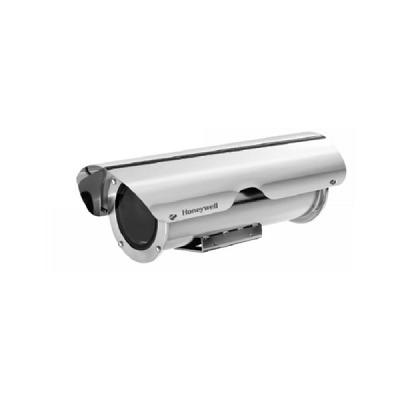

Camera IP 2.0 Megapixel HONEYWELL HCPB302
- Cảm biến hình ảnh: 1/2.8-inch Sony Progressive CMOS.
- Độ phân giải: 2.0 Megapixel.
- Ống kính: 4.5–135 mm, F1.6–F4.4.
- Tốc độ khung hình: Lên đến 60 fps.
- Độ nhạy sáng tối thiểu: 0.005 lux (color), 0.0005 lux (B/W) @ F1.6.
- Chuẩn nén hình ảnh: H.265/H.264/MJPEG.
- Tiêu chuẩn chống bụi và nước: IP68 (thích hợp sử dụng trong nhà và ngoài trời).
- Nguồn điện: 24VAC.
Đặc tính kỹ thuật
| Model | HCPB302 |
| CAMERA | |
| Image Sensor | 1/2.8-inch Sony Progressive CMOS |
| Optical Zoom | 30x |
| Digital Zoom | 16x |
| Number of Pixels | 1920 (H) × 1080 (V) |
| Shutter WDR | 120 dB |
| S/N RATIO | 55dB or more (AGC off) |
| Minimum Illumination | 0.005 lux (color), 0.0005 lux (B/W) @ F1.6 |
| Lens | 4.5–135 mm, F1.6–F4.4 |
| Angle of View | H: 62.35°–2.53° V: 37.87°–1.79° |
| Electronic Shutter Speed | 1/1–1/30 000 s |
| Day/Night | Auto/Color/BW |
| Backlight Compensation | BLC/HLC/WDR (120 dB) |
| White Balance | Auto/Indoor/Outdoor/ATW/Manual |
| Noise Reduction | 3DNR |
| Electronic Image Stabilization | On/Off |
| Defog | On/Off |
| OPERATION | |
| Privacy Masks | 24 |
| Motion Detection | On/Off |
| Video Analytics | Intrusion trace*; face detection |
| Event | Intrusion; face detection; motion detect; video tamper; IP address conflict; illegal access |
| Event Notification | Record to FTP, relay output, email, snapshot |
| IP SPECIFICATIONS | |
| Video Compression | H.265/H.264/MJPEG |
| Video Streaming | Primary Stream: 1080p @ 50/60fps; 1.3 MP/720p @ 25/30 fps Second Stream: 1080p/1.3 MP/720p @ 25/30 fps Third Stream: D1/CIF @ 25/30 fps |
| Video Resolution | Up to 1920 × 1080 pixels |
| Interface | RJ45, 10/100 Mbps Ethernet |
| Supported Protocols | IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, SSL, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, Bonjour, DNS, DDNS, IEEE 802.1x, QoS, NTP, IP Filter, ONVIF, RS485, Pelco P, Pelco D |
| Security | Multiple user access levels with enhanced password policy, IP filtering, IEEE 802.1X, strong digest authentication for access permission, HTTPS, TLS1.2 only, highstrength encrypted algorithm AES-256, SSH/ Telnet closed, FTP disabled to reduce surface being attacked, PCI-DSS compliant, built-in cybersecurity hardware chipset |
| Maximum Users | 20 users |
| Supported Languages (Web Client/Help) | English, Arabic, Czech, Dutch, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Turkish |
| Web Browsers | Internet Explorer (11.0+), Firefox, Chrome |
| Supported OS | Windows 7 32-bit/64-bit |
| Communication | ONVIF Profile S |
| ELECTRICAL | |
| Power Source | 24 VAC, 2.2 A, 50/60 Hz |
| Power Consumption | 42W max |
| MECHANICAL | |
| Dimensions | 460.0 × 184.0 × 164.0 mm |
| Weight | 8.5 kg |
| Connectors | Power Input: 3-pin Digital Input and GND: 2-pin for reset Alarm Output: 1 out RS485: 2-pin, half duplex, for wiper and washer Network: RJ45, 10/100 Mbps Ethernet |
| Construction | AISI 316L stainless steel, tempered glass |
| Cable Glands | 3 × PG13.5 |
| ENVIRONMENTAL | |
| Operating Temp | -40°C to 60°C, cold start -20°C |
| Relative Humidity | 10–95%, non-condensing |
| IP66/IP68 | IP66/IP68 |
| REGULATORY | |
| Emissions | EN 55032; EN 61000-6-4 |
| Immunity | EN 50130-4 |
| Safety | EN60950-1; EN60950-22 |
| RoHS | EN 50581 |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
