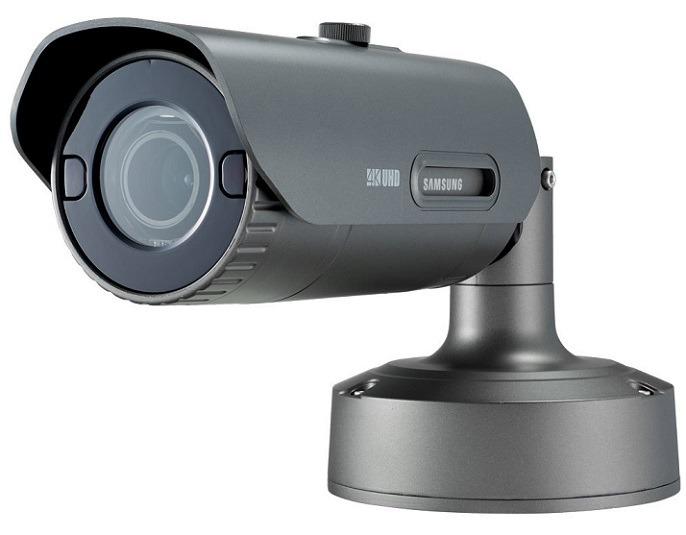

Camera IP 4K hồng ngoại 12 Megapixel Hanwha Techwin WISENET PNO-9080R/KAP
-Cảm biến hình ảnh: 1/1.7 inch CMOS.
-Chuẩn nén hình ảnh: H.265 / H.264/ MJPEG.
-Độ nhạy sáng: 0.3Lux (1/30sec, F1.6, 30IRE) (Color), 0.01Lux (2sec, F1.6, 30IRE), B/W: 0Lux (IR LED on).
-Hỗ trợ khe cắm thẻ nhớ micro SD/SDHC/SDXC dung lượng lên đến 128GB.
-Ống kính: 4.5 ~ 10mm (motorized varifocal).
-Tỉ lệ Zoom: 2.2x.
-Hỗ trợ âm thanh: 2 chiều.
-Tầm quan sát hồng ngoại: 40 mét.
-Chức năng giảm nhiễu số 2D + 3D.
-Chức năng quan sát Ngày và Đêm (ICR).
-Chức năng chống sương mù Defog.
-Chức năng phát hiện chuyển động: Off / On (8ea, Polygonal)
-Chức năng vùng riêng tư: Off / On (16ea, Polygonal) - Color: Gray / Green / Red / Blue / Black / White.
-Chức năng Digital auto tracking.
-Chức năng Simple focus.
-Chức năng lọc nhiễu kỹ thuật số Digital DNR (Dynamic Noise Reduction).
-Chức năng giảm nhiễu số 2D + 3D.
-1 kênh ngõ vào Audio, 1 kênh ngõ ra Audio.
-Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
-Chức năng chống va đập: IK10.
-Nguồn điện cung cấp: 24VAC.
-Chức năng cấp nguồn qua mạng PoE.
-Kích thước: 82.4 x 87.0 x 348.3mm.
-Trọng lượng: 1.4kg.
Đặc tính kỹ thuật
| Video | |
| Imaging Device | 1/1.7 inch CMOS |
| Total Pixels | 4,168(H) x 3,062(V) |
| Effective Pixels | 4,072(H) x 3,046(V) |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.3Lux (1/30sec, F1.6, 30IRE), 0.01Lux (2sec, F1.6, 30IRE) |
| S / N Ratio | 50dB |
| Video Output | CVBS: 1.0 Vpp / 75Ω composite, 714 x 480(N), 702 x 576(P), for installation |
| DIP connector type | |
| Lens | |
| Focal length (Zoom Ratio) | 4.5 ~ 10mm (2.2x) motorized varifoca |
| Max. Aperture ratio | F1.6 |
| Angular Field of View | [4096 x 2160] H : 100.3º (Wide) ~ 45.6º (Tele) / V: 49.7º(Wide) ~ 24.0º (Tele) |
| [3840 x 2160] H : 92.3º(Wide) ~ 42.6º(Tele) / V: 49.7º(Wide) ~ 24.0º(Tele) | |
| Min. Object Distance | 0.5m |
| Focus Control | Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus |
| Lens Type / Mount Type | P-Iris mode / Board-in type |
| Operation | |
| IR LED / Viewable Length | 4ea / 40m |
| Camera Title | Off / On (Displayed up to 60 characters) |
| - W/W: English / Numeric / Special characters | |
| - China: English / Numeric / Special / Chinese characters | |
| - Common: Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), | |
| Transparency, Auto scale by resolution | |
| Day & Night | Auto (ICR) / Color / B/W / External / Schedule |
| Backlight Compensation | Off / BLC / WDR |
| Wide Dynamic Range | 120dB |
| Contrast Enhancement (DWDR) | SSDR (Samsung Super Dynamic Range) (Off / On) |
| Digital Noise Reduction | SSNR (2D+3D noise filter) (Off / On) |
| Digital Image Stabilization | Off / On |
| Motion Detection | Off / On (8ea, Polygonal) |
| Privacy Masking | Off / On (16ea, Polygonal) - Color : Gray / Green / Red / Blue / Black / White |
| Gain Control | Off / Low / Middle / High |
| Defog | Off / Auto / Manual |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Flip / Mirror | Off / On, Hallway : 90° /270° |
| Intelligent Video Analytics | Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection - Support metadata |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Alarm input, Motion detection, Video analytics, Audio detection, Network disconnect |
| Alarm Events | File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers) or NAS recording at event (Alarm triggers), External output |
| Pixel Counter | Support (Plug-in viewer only) |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression Format | H.264 (MPEG-4 part 10/AVC), MJPEG |
| Resolution | [8M mode] 4096 x 2160, 3840 x 2160, 2592 x 1944, 2592 x 1464, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| [12M mode] 4000 x 3000, 3840 x 2160, 2592 x 1944, 2592 x 1464, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 | |
| Max. Frame rate | H.265 / H.264: 20fps@4000 x 3000, 30fps@4096 x 2160 |
| MJPEG: 2fps@4000 x 3000 ~ 2592 x 1464, 15fps@1920 x 1080 ~ 320 x 240 | |
| Smart Codec / WiseStream | Smart Codec / WiseStream |
| Video Quality Adjustment | H.265 / H.264: Target bitrate level control, MJPEG: Quality level contro |
| Bitrate Control Method | H.264: CBR or VBR, MJPEG: VBR |
| Streaming Capability | Multiple streaming (Up to 10 profiles) |
| Audio In | Selectable (Mic in / Line in) (Built-in mic) |
| Supply voltage: 2.5VDC (4mA), Input impedance: approx. 2K Ohm | |
| Audio Out | Line out (3.5mm stereo mini jack), Max output level: 1Vrms |
| Audio Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz. G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Audio Communication | Bi-directional audio (2-way) |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 users at unicast mode |
| Edge Storage | SD/SDHC/SDXC (128GB) - Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded, Camera can detect automatically when the memory is connected, |
| Memory status display (Normal / Error / Active / Formatting / Lock), NAS (Network Attached Storage), Local PC for instant recording (Plug-in viewer only) | |
| Application Programming Interface | ONVIF profile S/G, SUNAPI (HTTP API), SVNP, Wisenet Open Platform |
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11. Plug-in free Webviewer |
| - Supported Browser: Google Chrome 47, MS Edge 20. Plug-in Webviewer | |
| - Supported Browser: MS Explore 11, Mozilla Firefox 43, Apple Safari 9, Mac OS X only | |
| Central Management Software | SmartViewer |
| Ingress Protection / Vandal Resistance | IP66/ IK10 |
| ELECTRICAL | |
| Input Voltage / Current | 24VAC, 12VDC, PoE (IEEE802.3af, Class3) |
| Power Consumption | 12VDC: Max. 11.55W, PoE: Max.12.95W, 24VAC (50/60Hz): 14.08W - Heater on |
| 12VDC: Max. 10.45W, PoE: Max.11.77W, 24VAC (50/60Hz): 12.43W - Heater off | |
| Color / Material | Dark gray/ Aluminium |
| Dimensions | 82.4 x 87.0 x 348.3mm |
| Weight | 1.4kg |
-Hãng sản xuất: Hanwha Techwin Hàn Quốc.
-Sản xuất tại Korea.
-Bảo hành: 24 tháng.
