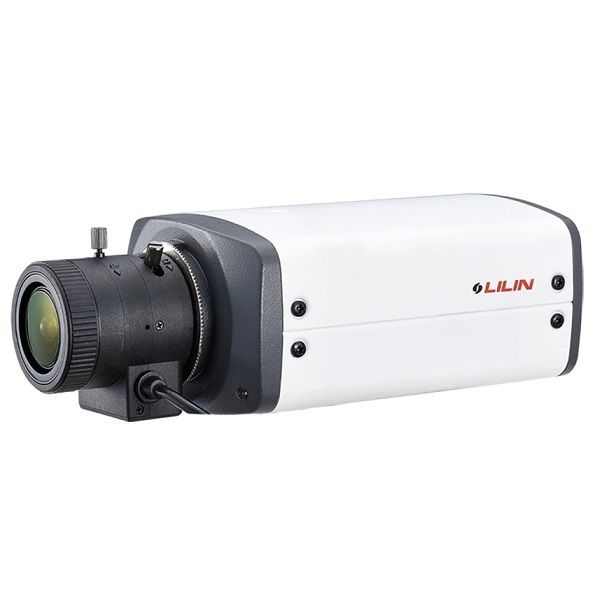

Camera IP 5.0 Megapixel LILIN P2G1052
- Cảm biến hình ảnh: 1/2.8″ CMOS.
- Độ phân giải: 5.0 Megapixel.
- Chuẩn nén: H.265/HEVC và H.264/AVC.
- Giảm nhiễu 3D noise reduction (MCTF).
- Chống ngược sáng HDR 120dB.
- Hỗ trợ Digital PTZ.
- Hỗ trợ tính năng thông minh IVS.
- Camera tích hợp Microphone, hỗ trợ âm thanh 2 chiều.
- Hỗ trợ chuẩn ONVIF Profile S và Profile T.
- Nguồn điện: DC12V ±10% / PoE (IEEE 802.3af compliant).
- Chưa bao gồm ống kính.
Thông số kỹ thuật
| Model | P2G1052 |
| Min. illumination/Low Light Mode (Colour) | Color: 0.04 Lux at F1.4; B/W: 0.01 Lux at F1.4 |
| Iris Control | DC-IRIS |
| Pick Up Element | 1/2.8″ CMOS image sensor |
| Effective pixels | 2616 (H) × 1964 (V) = 5,137,824 (Pixels) |
| Audio Input / Output | Mono, 1.98 Vp-p, 2.2KΩ, 3.5mm phone jack |
| Audio | Two-way Audio, G.711 u-law / PCM / AAC, SIP, Built-in Microphone |
| Alarm Input / output | Digital 1 input (TTL, +3 – 5VDC) / 1 Output (MOS Relay contact N.O., Load.max. 40VDC, 450mW/300mA, 450mW), Terminal block |
| Live Video Output | CVBS 1.0Vp-p, 75 ohm, RCA jack |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile, Motion JPEG |
| Video streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast 4 configurable streams in H.265 and H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Number of streams | 4 |
| Authentication | Digest HTTP authentication, RTSP authentication, TLS, 802.1x, DDNS via HTTPS |
| Address Filter | IP address filter, MAC address filter |
| Access | Multiple user access levels with password protection |
| User accounts | 10 user accounts available |
| Multi IP address | Yes |
| Resolution | 5MP(2592 × 1944), 4MP(2304 × 1728), 3.1MP(2048 × 1536), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Maximum Frame Rate | Normal mode: up to 25 fps @ 2592 × 1944 HDR mode: up to 25 fps @ 2592 × 1944 |
| Scanning System | Progressive Scan |
| Infrared Cut Filter | Auto / Day (Color) / Night (Mono) / Schedule |
| White Balance | ATW-NARROW / ATW-WIDE / AWC(MANUAL) |
| Back Light Compensation | Yes |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| Sense Up | Off / x2 / x4 / x8 / x16 |
| Sense Up+ | Yes |
| Auto Gain Control | 60 dB Variable Gain |
| S / N Ratio | More than 50dB (AGC off) |
| 3D Noise Reduction | Off / 1 – 32 Selectable |
| 2D WDR | Off / Auto / x2 / x3 / x4 (by normal mode) Support Onvif |
| High Dynamic Range (HDR) | Up to 120dB (by HDR mode, 2 shutter line interleave) |
| Privacy Masking | Off / On (4 zones) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Rotation, Overexposure Reduction |
| EV (Exposure Value) | Adjustable |
| Lens distorsion correction (LDC) | Yes |
| Video Management | ONVIF Profile S / ONVIF Profile T / IVS events, LILIN Navigator Enterprise 5.0 support, Third party VMS through LILIN HTTP API |
| SD Card (recording) | Support Micro SD/SDHC/SDXC card for circular recording (card is not included) |
| IVS Basic 1.0 | Motion Detection, Tampering Detection, Advanced Motion Detection, Traffic Light Detection, Tripwire Detection, Object Counting |
| Alarm event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / SmartEvent |
| Alarm event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm / SNMP Trap / Push Service notification |
| Network Interface/ Ethernet | 10/100 Mbps Base-T (Tx), RJ-45 |
| ePTZ & Digital Zoom | Yes, ROI (Region of Interest) |
| Protocols | IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, SIP, MQTT, QoS, SNMP V1/V2/V3, SNMP Trap and heart beat, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S , ONVIF Profile T, SDDP, Bonjour , 802.1x, SSL/TLS |
| Max number of online users | 10 simultaneous users |
| Network Storage | NAS (Support SAMBA/CIFS) |
| Operating temperature | -20°C ~ +50°C (-4°F ~ 122°F) |
| Storage temperature | -25°C ~ +60°C (-13°F ~ 140°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Dimensions | 70(W) × 50(H) × 110(D) mm |
| Weight | 380g |
| Casing Material | Aluminum alloy |
- Bảo hành: 36 tháng.
