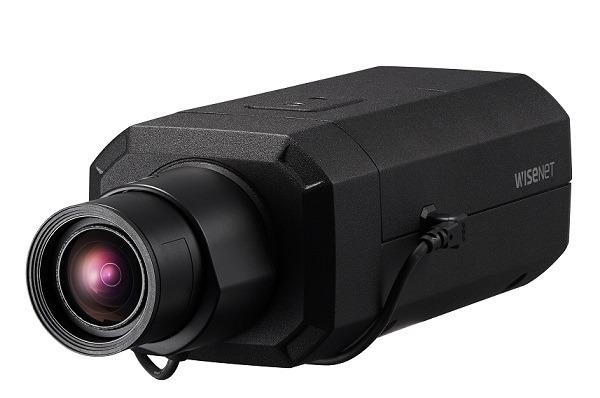

Camera IP 8.0 Megapixel Hanwha Techwin WISENET PNB-A9001
- Cảm biến hình ảnh: 1/1.8 inch CMOS.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Tốc độ khung hình: Max 30fps@8MP.
- Độ nhạy sáng color: 0.03Lux(F1.2, 1/30sec).
- Hỗ trợ chức năng camera quan sát Day&Night auto (ICR).
- Chức năng chống ngược sáng WDR (120dB).
- Hỗ trợ WiseStreamII, chuẩn ONVIF Profile S/G/T.
- Khe cắm thẻ nhớ MicroSD/SDHC/SDXC.
Đặc tính kỹ thuật
| Video | |
| Imaging Device | 1/1.8 inch 8MP CMOS |
| Effective Pixels | 3864(H)x2180(V) |
| Min. Illumination | Color: 0.03Lux(F1.2, 1/30sec) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation |
| Lens | |
| Focus Control | Simple focus |
| Lens Type | DC auto iris, P iris, Manual, I-CS |
| Mount Type | C mount, CS mount |
| Operational | |
| Camera Title | Off / On (Up to 85 characters) |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Motion Detection | 8ea, polygonal zones |
| Privacy Masking | 6ea, rectangle zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Classified object type: Person/Face/Vehicle/License plate with attributes, BestShot per object |
| Analytics events based on AI engine: Object detection, Directional detection, Digital auto tracking, Enter/Exit, Loitering, Virtual line | |
| Analytics events: Defocus detection, Motion detection, Appear/Disappear, Tampering, Audio detection, Sound classification, Shock detection | |
| Business Intelligence | People counting, Queue management, Heatmap based on AI engine |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
| Alarm I/O | Input 1ea / Output 1ea / DC 12V Power(Max. 50mA) 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover |
| Audio In | Selectable (mic in/line in/Built in MIC) Supply voltage: 2.5VDC (4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| Network | |
| Ethernet | RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) |
| MJPEG: Max. 15fps/12fps(60Hz/50Hz) | |
| Smart Codec | Manual (5ea area), WiseStream II |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
| Edge Storage | Micro SD/SDHC/SDXC 2slots 512GB |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI (HTTP API) Wisenet open platform |
| Memory | 4096MB RAM, 512MB Flash |
| General | |
| Input Voltage | PoE+(IEEE802.3at), 12VDC |
| Power Consumption | PoE+: Max 16.50W, typical 12.50W 12VDC: Max 13.50W, typical 10.80W |
| Color / Material | Body: Black / Aluminum |
| Dimensions | 81 x 67 x 165 mm |
| Weight | 0.88kg |
- Hãng sản xuất: Hanwha Techwin Hàn Quốc.
- Bảo hành: 24 tháng.
