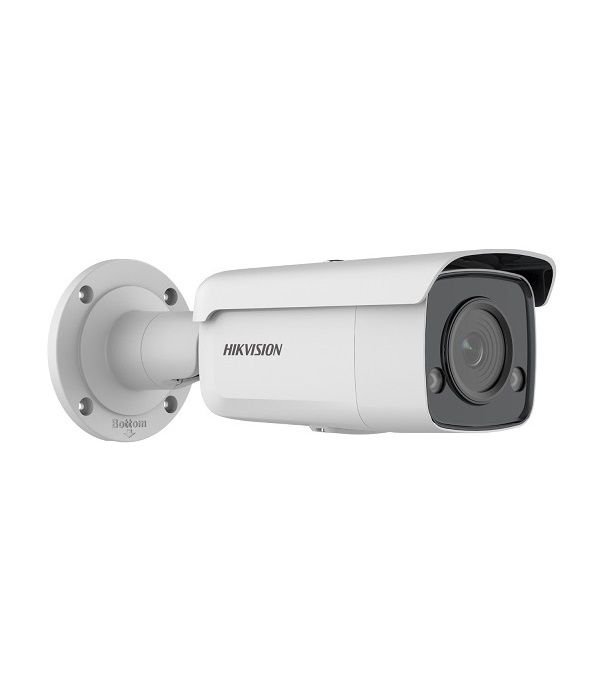

Camera IP COLORVU 2.0 Megapixel HIKVISION DS-2CD2T27G2-L(C)

Camera IP COLORVU 2.0 Megapixel HIKVISION DS-2CD2T27G2-L(C)

  • MS 0016739
  • HIKVISION
Giá : 2,970,000 vnđ (Đã bao gồm VAT)

Camera IP COLORVU 2.0 Megapixel HIKVISION DS-2CD2T27G2-L(C)

Camera IP COLORVU 2.0 Megapixel HIKVISION DS-2CD2T27G2-L(C)

- HIKVISION DS-2CD2T27G2-L(C) là dòng camera IP ColorVu và chống báo giả cho hình ảnh màu sắc 24/7.

- Cảm biến hình ảnh: 1/2.8 inch Progressive Scan CMOS.

- Độ phân giải: 2.0 Megapixel.

- Độ chạy sáng: Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with Light.

- Chuẩn nén hình ảnh: H.265/H.264/H.264+/H.265+.

- Chức năng chống ngược sáng thực 120dB WDR.

- Chống báo giả bằng thuật toán deep learning phân biệt người và phương tiện.

- Chức chống ngược sáng BLC (BackLight Compensation).

- Chức năng lọc nhiễu kỹ thuật số 3D DNR.

- Hỗ trợ khe cắm thẻ nhớ microSD/SDHC/SDXC/TF lên đến 256GB.

- Đèn hỗ trợ 60m.

- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).

Đặc tính kỹ thuật

ModelDS-2CD2T27G2-L(C)
Camera
Image Sensor1/2.8 inch Progressive Scan CMOS
Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with Light
Shutter Speed1/3 s to 1/100.000 s
Slow ShutterYes
P/NP/N
Wide Dynamic Range120 dB
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens TypeFixed focal lens, 2.8, 4, and 6 mm optiona
Focal Length & FOV2.8 mm, horizontal FOV 107°, vertical FOV 56°, diagonal FOV 127°
4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99°
6 mm, horizontal FOV 55°, vertical FOV 30°, diagonal FOV 63°
Iris TypeFixed
Depth of Focus2.8 mm, 1.7 m to ∞
4 mm, 2.3 m to ∞
6 mm, 5.3 m to ∞
ApertureF1.0
Lens MountM12
DORI
DORI2.8 mm, D: 46 m, O: 18 m, R: 9 m, I: 4 m
4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m
6 mm, D: 83 m, O: 33 m, R: 16 m, I: 8 m
Illuminator
White Light Range60 m
Smart Supplement LightYes
Video
Max. Resolution1920 × 1080
Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub Stream50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
H.264+Main stream supports
H.265+Main stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)1 fixed region for main stream and sub-stream
Network
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Day/Night SwitchDay, Night, Auto, Schedule
Image EnhancementBLC, HLC, 3D DNR
Image Parameters SwitchYes
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
SNR≥ 52 dB
Interface
On-board StorageBuilt-in memory card, support microSD/SDHC/SDXC card, up to 256 GB
Hardware ResetYes
Communication Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart EventScene change detection
Deep Learning Function
Face CaptureYes
Perimeter ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection
Supports human and vehicle targets classification
General
Linkage MethodUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
Firmware VersionV5.5.113
Web Client Language33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Software ResetYes
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non- condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25%
PoE: 802.3af
Power Consumption and Current12 VDC, 0.63 A, max. 7.5 W
PoE (802.3af, 36 V to 57 V), 0.25 A to 0.16 A, max. 9 W
Power InterfaceØ 5.5 mm coaxial power plug
MaterialFront cover: metal, back cover: metal
Screw MaterialSUS304
Camera DimensionØ 105 mm × 289.5 mm
Package Dimension385 mm × 190 mm × 180 mm
Camera WeightApprox. 1090 g (2.4 lb.)
With Package WeightApprox. 1584 g (3.5 lb.)
Approval
EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016);KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); LOA (IEC/EN 60950-1)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013)

- Bảo hành: 24 tháng.
